LENS, Instrument Cluster: Removal: Removal

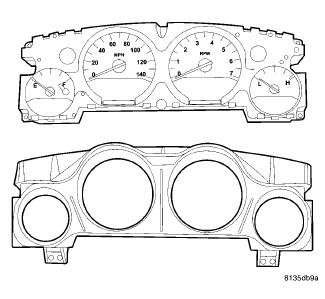

Fig 1: Removing/Installing Instrument Cluster Lens

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
   WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment, personal injury or death.
2. Remove the instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Removal .
3. Remove the cluster retaining screws and remove the cluster from the dash.
4. Separate the cluster lens from the cluster by removing the screws from the backside of the lens.
