Clock (Service Information): Removal: Removal

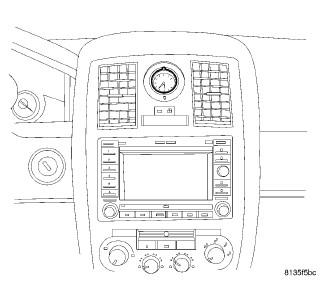

Fig 1: Instrument Panel Center Bezel

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the Instrument Panel Center Bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Removal .
   Fig 2: Identifying Clock Retaining Screws

   Courtesy of CHRYSLER LLC
3. Remove the two retaining screws (1) holding the clock to the rear of the I/P Center Bezel.
   Fig 3: Clock Illumination Lamps

   Courtesy of CHRYSLER LLC
4. To replace the clock illumination lamps (1), turn sockets (1) counterclockwise to remove lamp and socket (1).
