Diagnostic Test

VERIFY THAT DTC B1096-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT LOW IS ACTIVE
1. With the scan tool, record and erase DTC's
2. Operate the Heated Seat Switch in both positions several times.
3. With the scan tool, read DTC's.
  Does the DTC B1096-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT LOW reset?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
DISCONNECT RIGHT SEAT CUSHION HEATER 2-WAY CONNECTOR AND READ DTC'S

Fig 1: IDENTIFYING PASSENGER SEAT CUSHION HEATER 2-WAY CONNECTOR
Courtesy of CHRYSLER LLC
1. Disconnect the Right Seat Cushion Heater connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. With the scan tool, erase HSM DTC's
3. Operate the Heated Seat Switch in both positions several times.
4. With the scan tool, read DTC's.
  Does the scan tool display the same DTC?

  Yes
  - Go to step 7
  No
  - Go to step 3
CHECK THE RIGHT SEAT BACK HEATER RESISTANCE

Fig 2: Checking Right Seat Back Heater Resistance
Courtesy of CHRYSLER LLC
1. Disconnect the Right Seat Back Heater connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Check the resistance of the seat back heater element by measuring between the (P188) Right Seat Heater B(+) Driver and the Ground circuit at the Right seat back heater connector.
  Is the resistance below 4.0 ohms?

  No
  - Go to step 4
  Yes
  - Replace the seat back heater element as necessary.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE RIGHT SEAT BACK HEATER FOR A SHORT TO GROUND

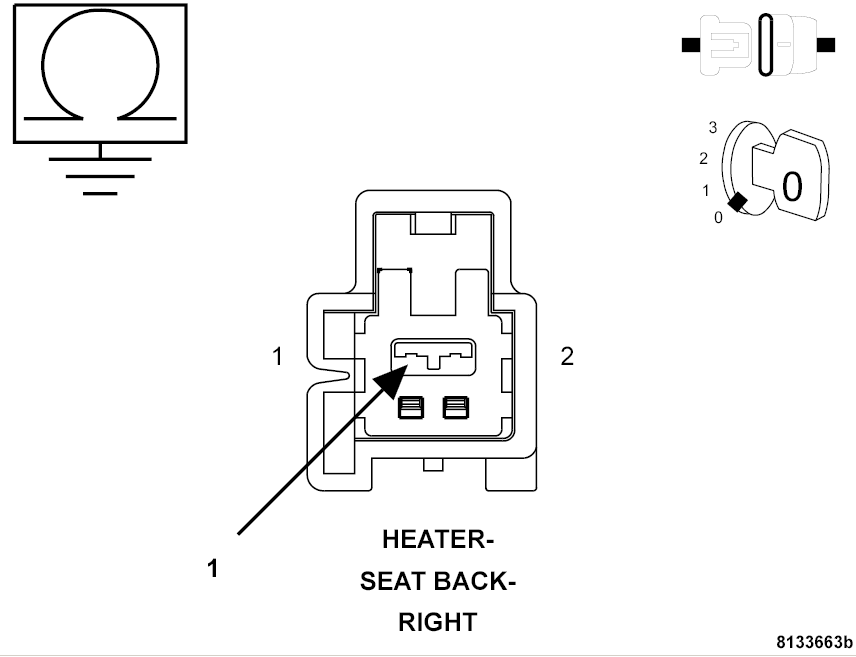

Fig 3: Checking Right Seat Back Heater For Short To Ground
Courtesy of CHRYSLER LLC
1. Measure between the (P188) Right Seat Heater B(+) Driver circuit at the Right Seat Back Heater connector and the seat frame for a short to ground.
  Is the resistance below 1000 ohms?

  Yes
  - Repair the pigtail harness for a short to ground condition or replace the seat back heater element as necessary.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 5
CHECK THE RIGHT SEAT CUSHION HEATER RESISTANCE

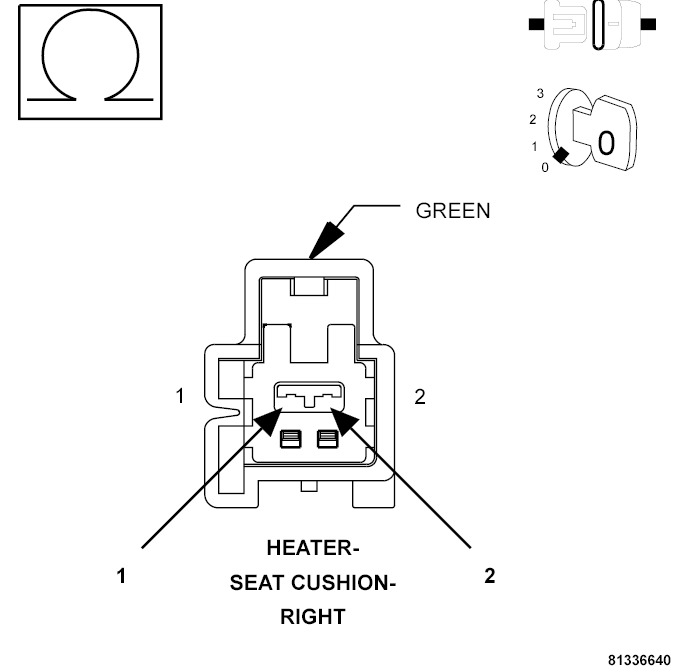

Fig 4: Checking Right Seat Cushion Heater Resistance
Courtesy of CHRYSLER LLC
1. Check the resistance of the cushion heater element by measuring between the (P188) Right Seat Heater B(+) Driver and the Ground circuit at the Right seat cushion heater connector.
  Was the resistance below 3.5 ohms?

  No
  - Go to step 6
  Yes
  - Replace the heater element as necessary.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE RIGHT SEAT CUSHION HEATER FOR A SHORT TO GROUND

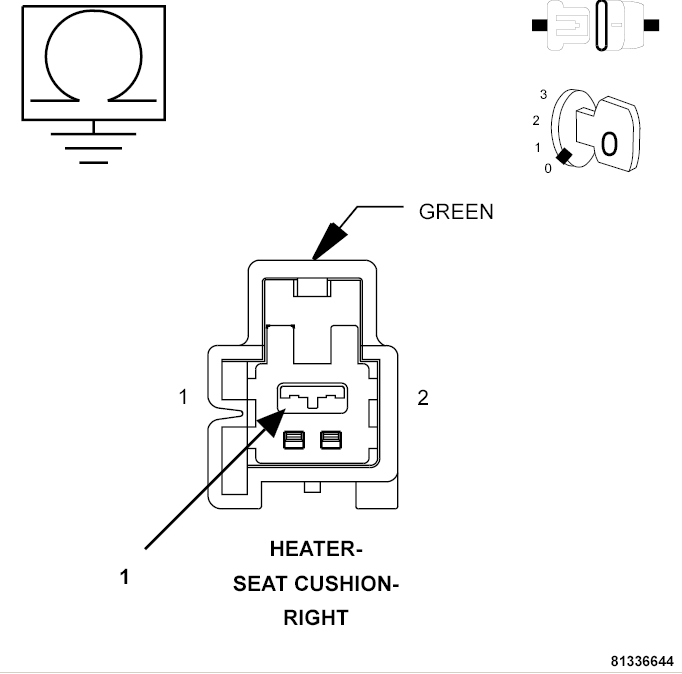

Fig 5: Checking Right Seat Cushion Heater For Short To Ground
Courtesy of CHRYSLER LLC
1. Measure between the (P188) Right Seat Heater B(+) Driver circuit at the Right Seat Cushion Heater connector and the seat frame for a short to ground.
  Is the resistance below 1000 ohms?

  Yes
  - Repair the pigtail harness or replace the heater element as necessary.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent short to ground.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK THE (P188) RIGHT SEAT HEATER B(+) DRIVER CIRCUIT FOR A SHORT TO GROUND

Fig 6: Checking Right Seat Heater B(+) Driver Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Disconnect the Heated Seat Module connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Measure the (P188) Right Seat Heater B(+) Driver circuit to ground at the HSM connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (P188) Right Seat Heater B(+) Driver circuit for a short to ground.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Heated Seat Module in accordance with the Service Information.
  - Perform BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
