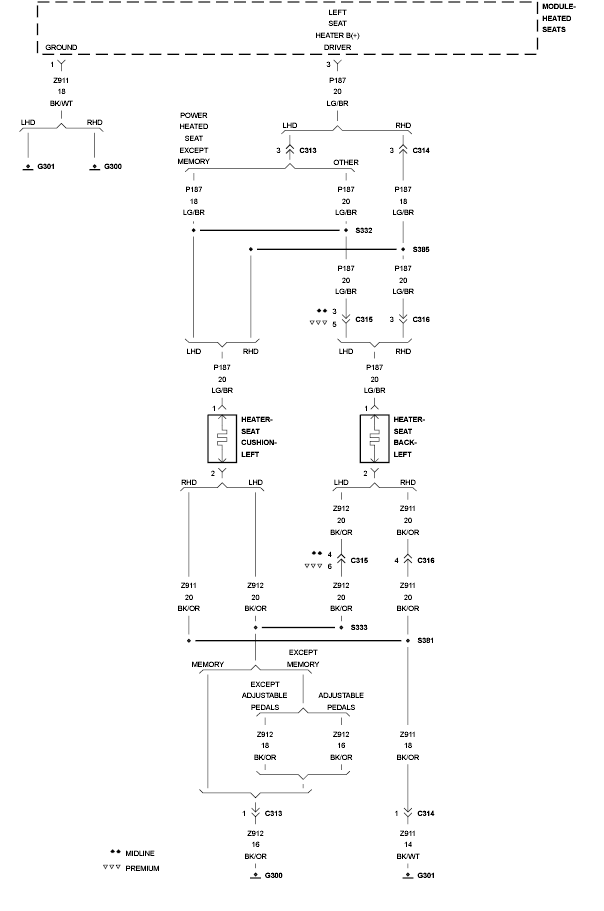

Home >> Chrysler >> 2009 >> 300 LX >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> (Heated Seat Module (HSM) - Electrical Diagnostics) >> DTC Troubleshooting >> B1094-Front Left Seat Heater Control Circuit Open >> Circuit Schematic
