Removal







REMOVAL





NOTE: If solenoid/pressure switch assembly is being replaced, the "Quick-Learn" procedure must be performed Quick Learn Procedure.

1. Disconnect battery negative cable.
2. Remove air cleaner assembly.

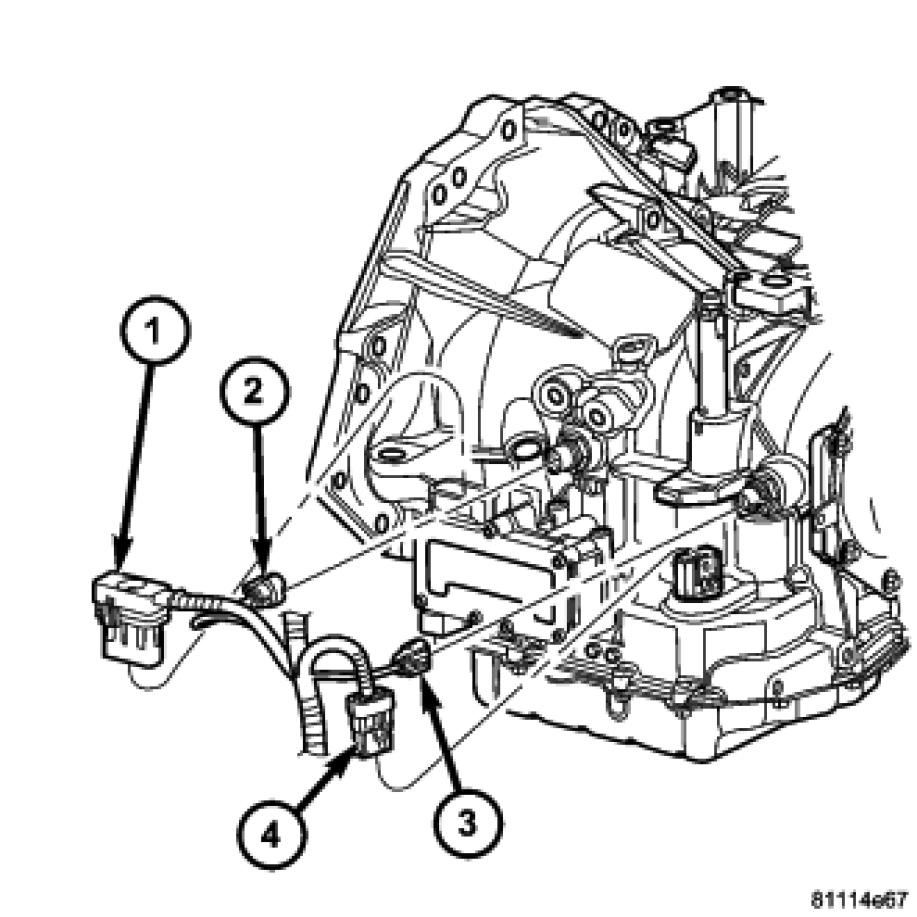

3. Disconnect solenoid/pressure switch assembly connector (1).
4. Disconnect input speed sensor connector (2).

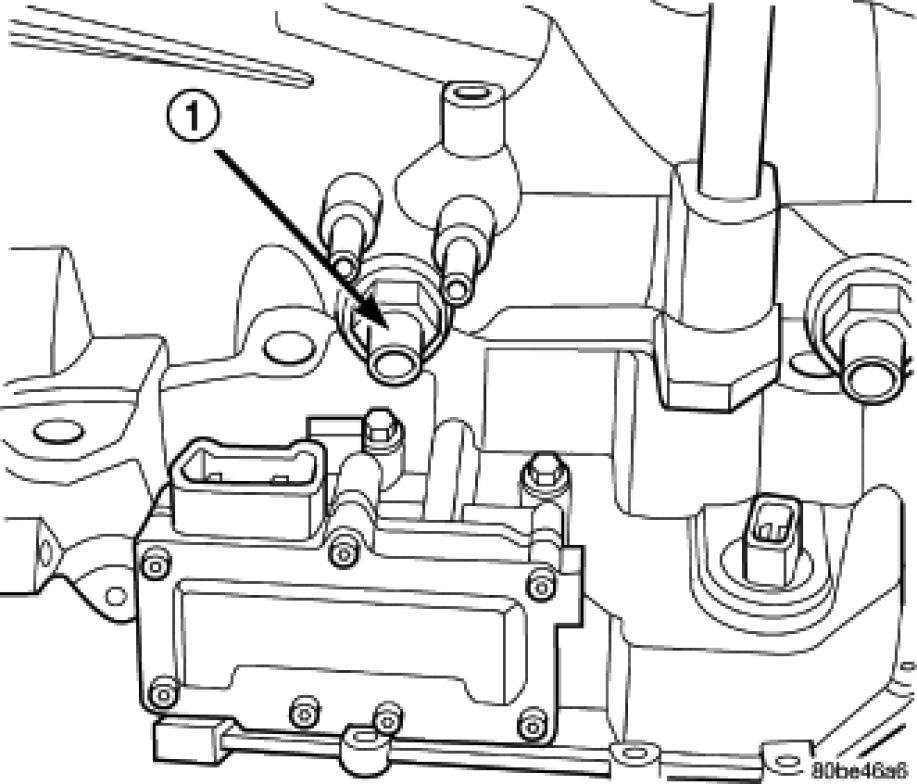

5. Remove input speed sensor (1).

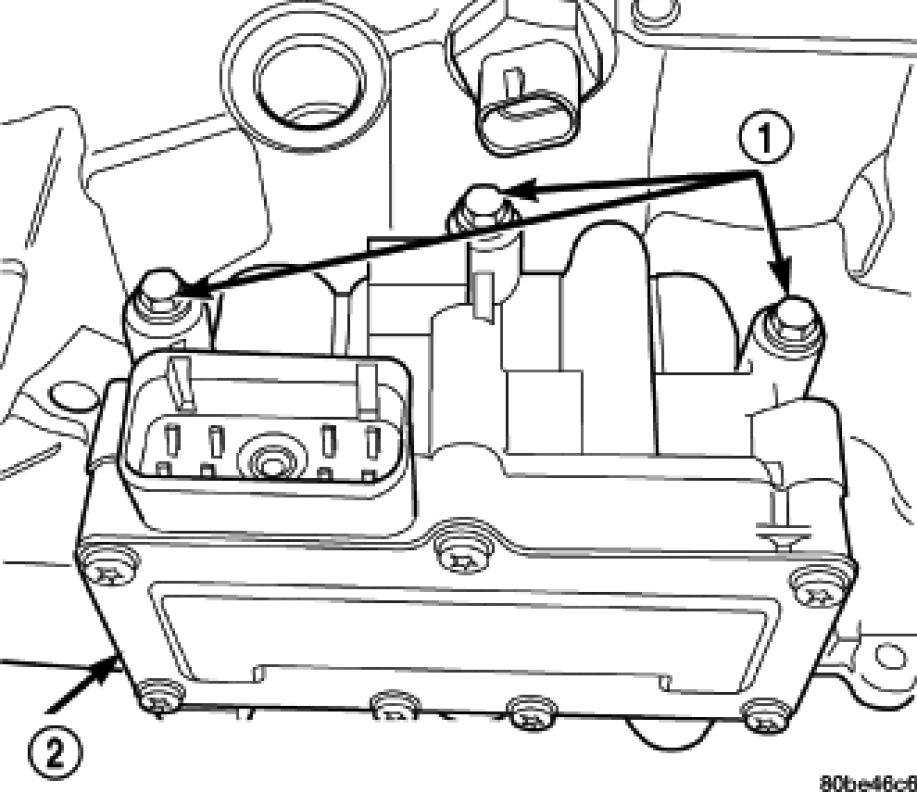

6. Remove three solenoid/pressure switch assembly-to-transaxle case bolts (1).

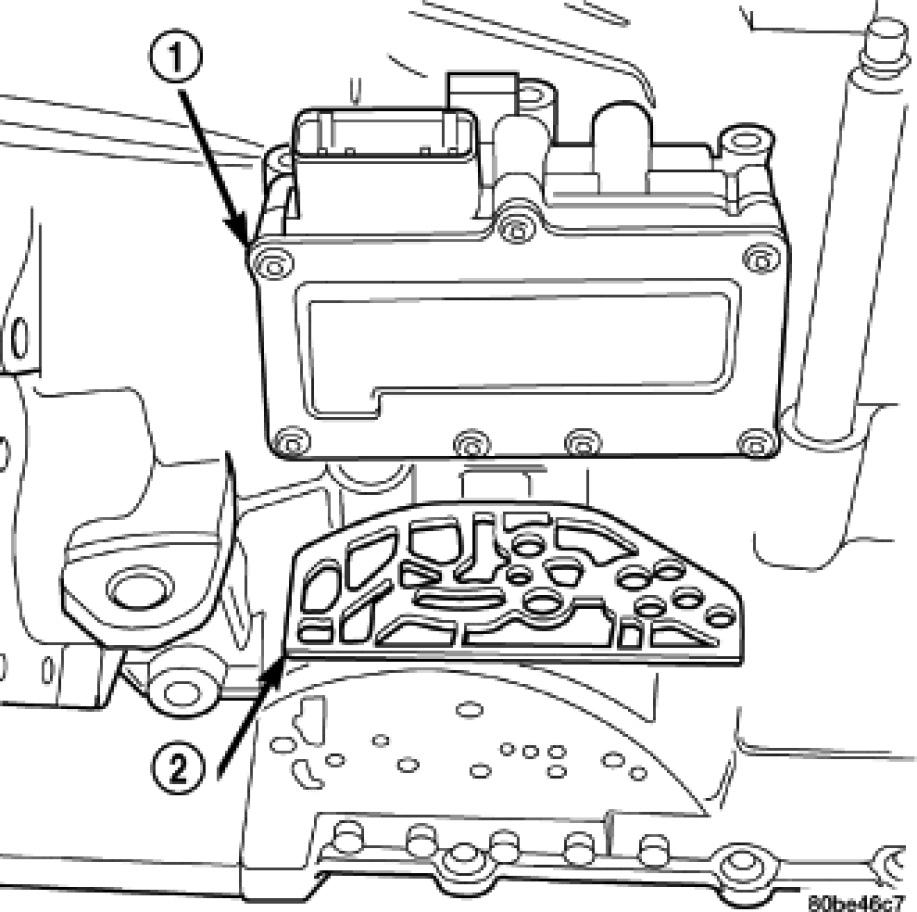

7. Remove solenoid/pressure switch assembly (1) and gasket (2). Use care to prevent gasket material and foreign objects from become lodged in the transaxle case ports.
