Rear Half Shaft

INSTALLATION





1. Install halfshaft to hub/bearing assembly. Install hub nut and washer but do not tighten at this time.

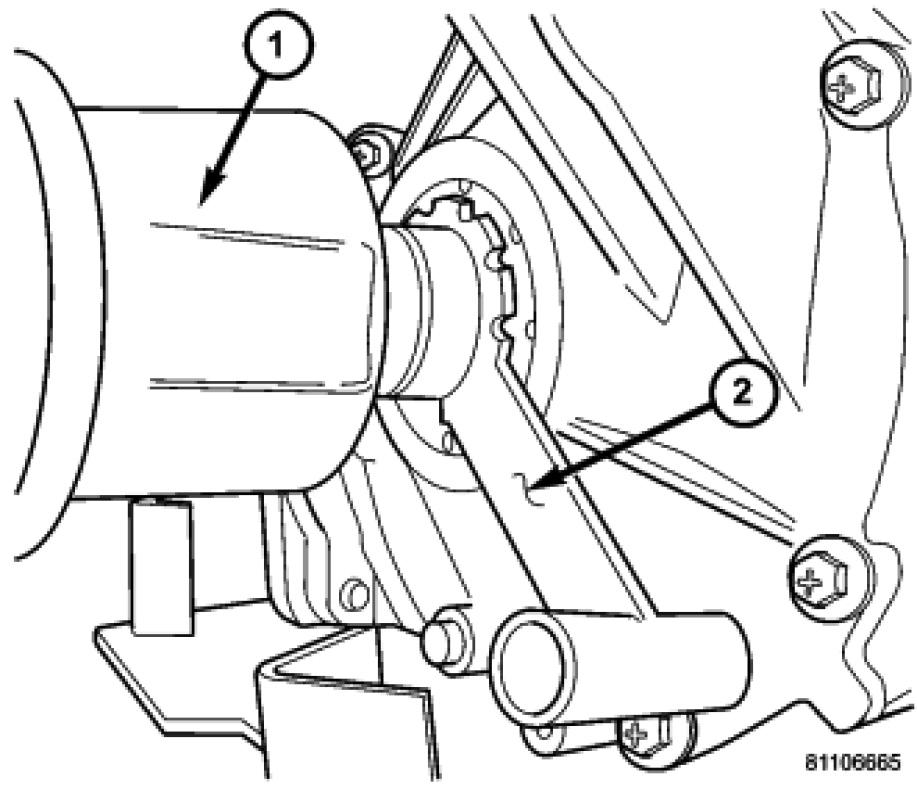

2. Using Seal Protector 9099 (2), install halfshaft (1) to differential assembly. Clean tool and seal area to prevent debris intrusion.

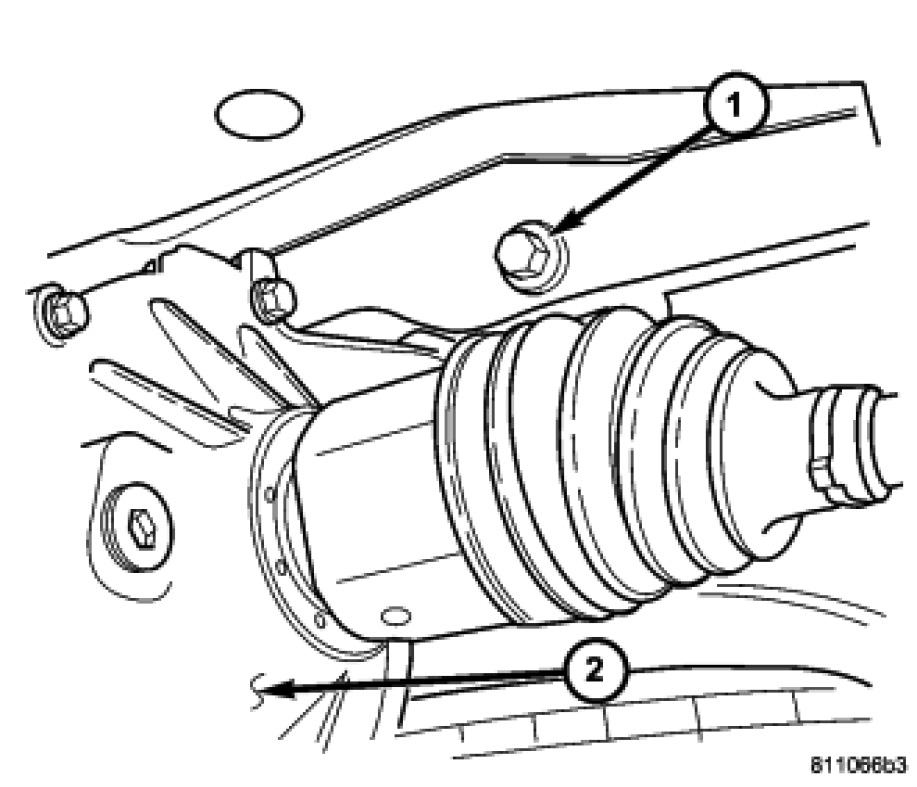

3. Raise driveline module into position. Install module mounting bolt (1).

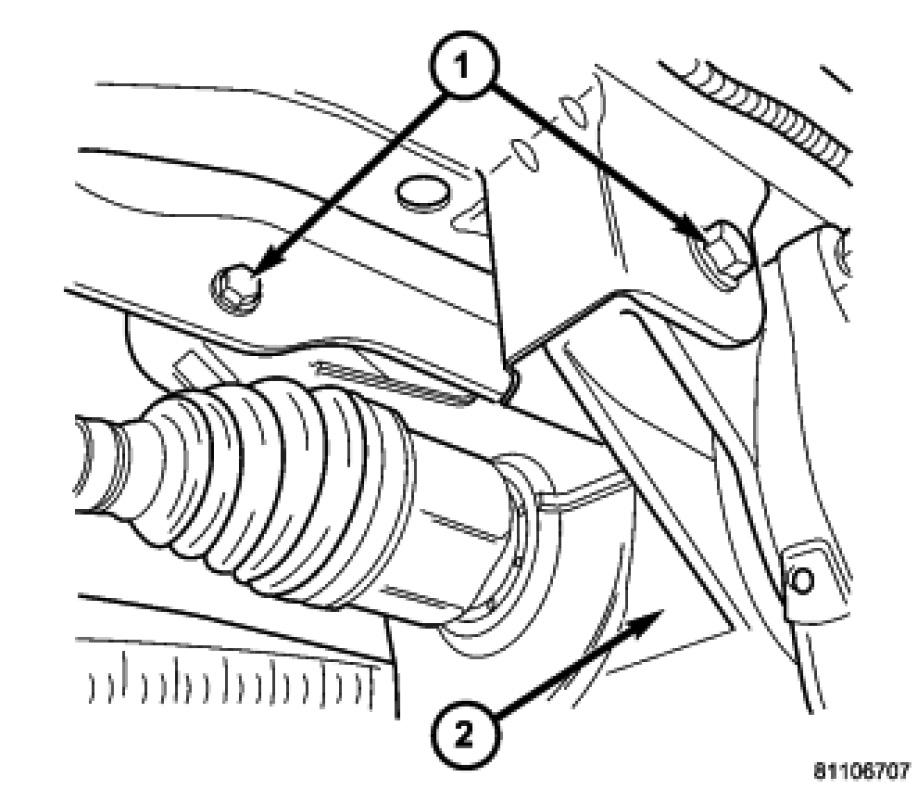

4. Install remaining two module mounting bolts (2).
5. Torque module-to-cradle bolts to 102 Nm (75 ft. lbs.)
6. Torque the halfshaft/hub nut to 160 Nm (118 ft.lbs.).
7. Install wheel center cap.
8. Check and adjust differential fluid level. Procedures
