Description

DESCRIPTION

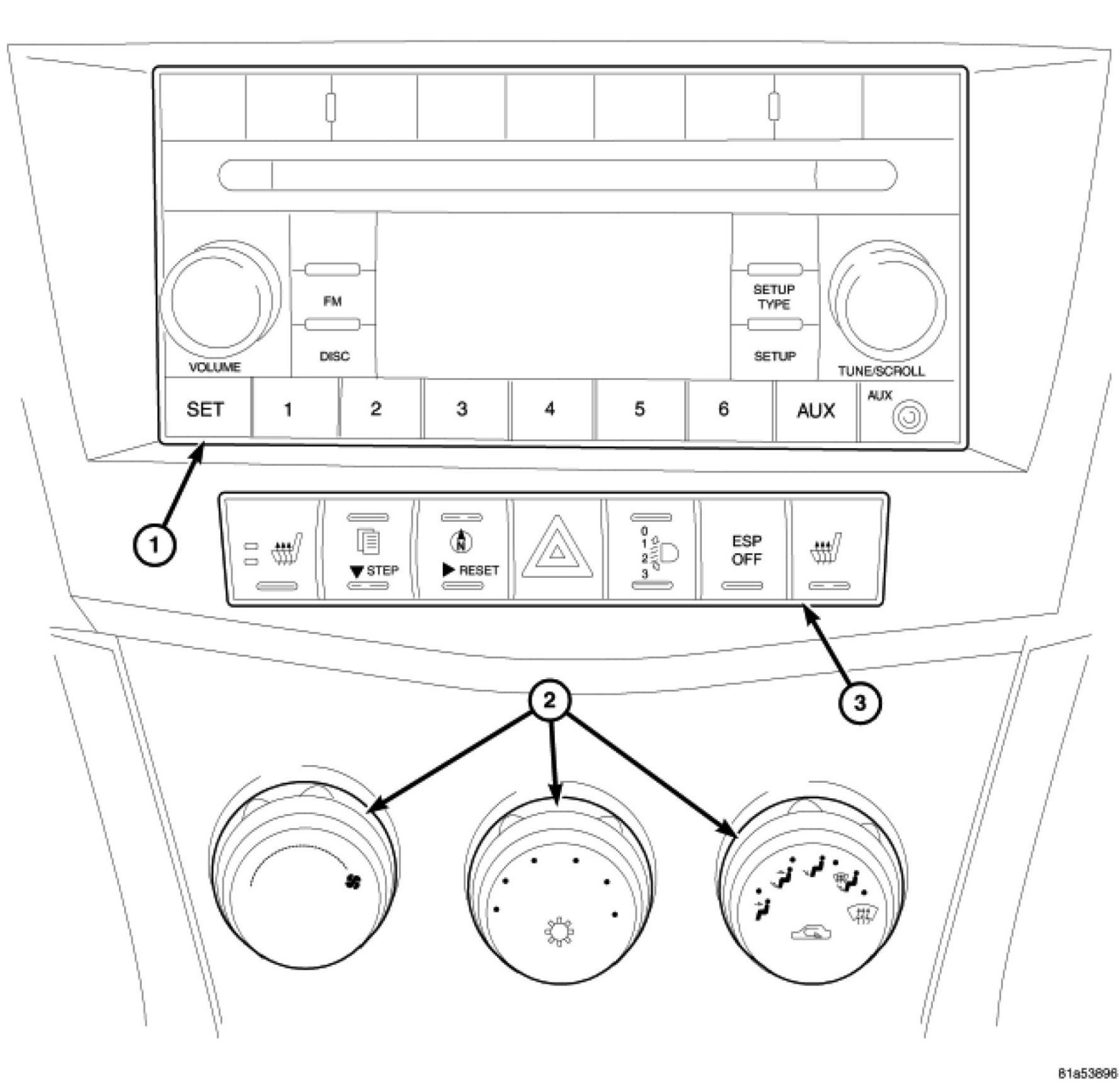

The hazard switch is located in the Accessory Switch Bank Module (ASBM) (3) just below the radio (1), and above the heater air conditioning controls (2) in the instrument panel center stack. This switch is the control for the hazard warning lighting. The only visible component of the switch is the control push button that is located in the center of the ASBM. The hazard switch cannot be adjusted or repaired. If the switch is ineffective or damaged, the entire ASBM must be replaced Removal.
