Crankshaft Sprocket







INSTALLATION - CRANKSHAFT SPROCKET

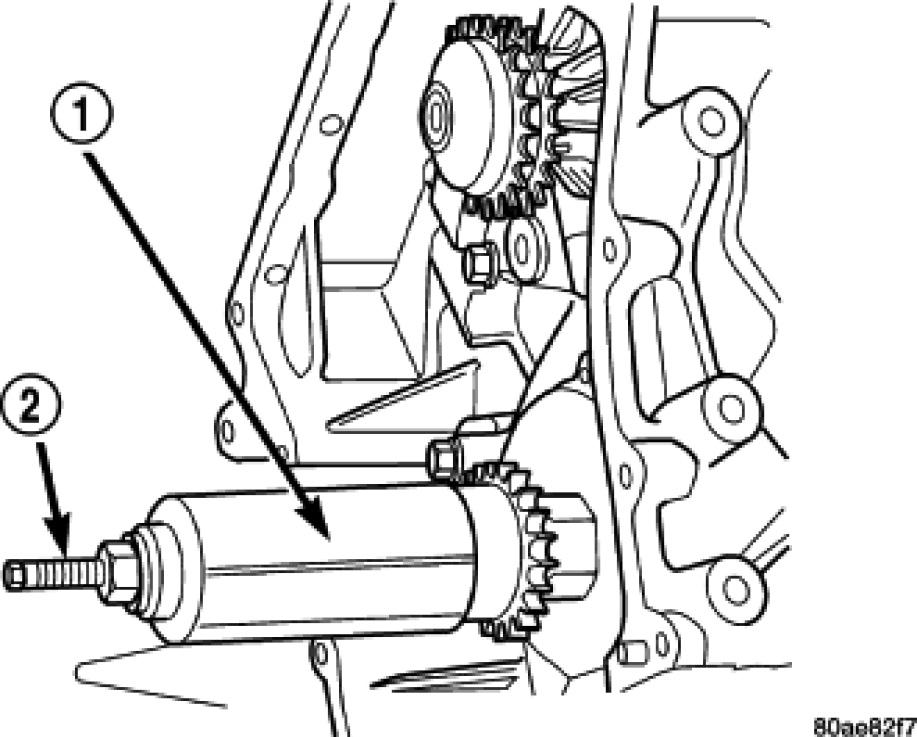

1. Install crankshaft sprocket using Special Tools 6780-1 and 8179 (2) until sprocket bottoms against crankshaft step flange. Use care not to rotate crankshaft.

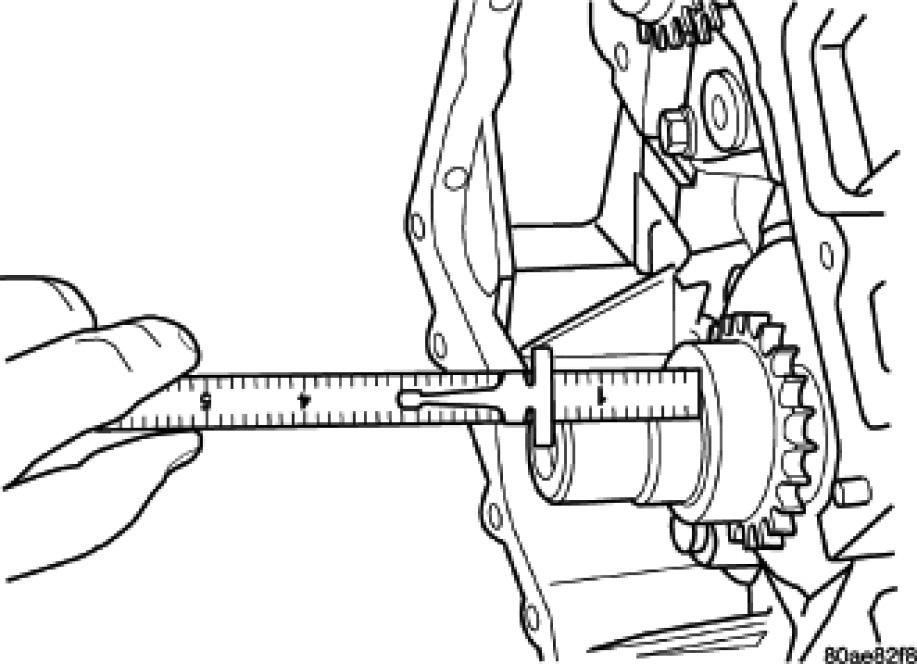

2. Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft. Measurement should read: 39.05 ±0.50 mm (1.5374 ±0.020 in.).
3. Install primary timing chain. Timing Chain & Sprockets - Installation.
