Rear

REMOVAL





NOTE: Fabric covered cushions are serviced as an assembly.

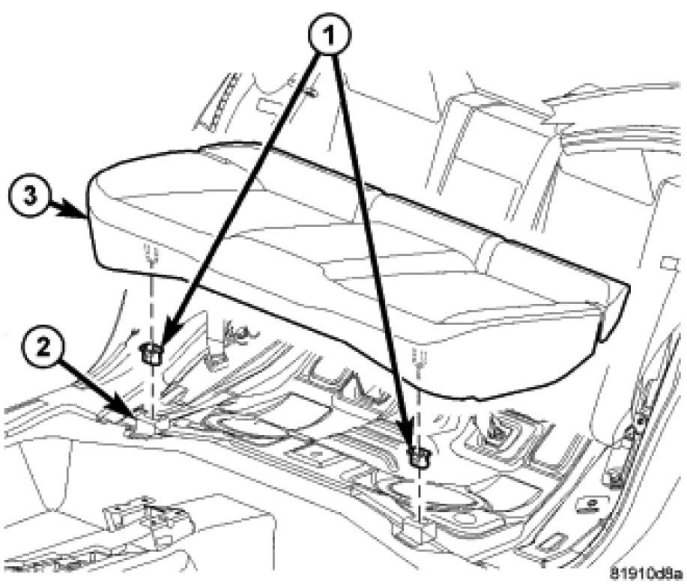

1. Pull upward at forward edge of cushion (3) each retainer loop of the rear seat cushion to disengage retainer loops from cups in floor (2).
2. Guide seat belts through loops.
3. Remove rear seat cushion from vehicle.
