Front Seat

INSTALLATION





1. Position seat back onto seat adjuster.

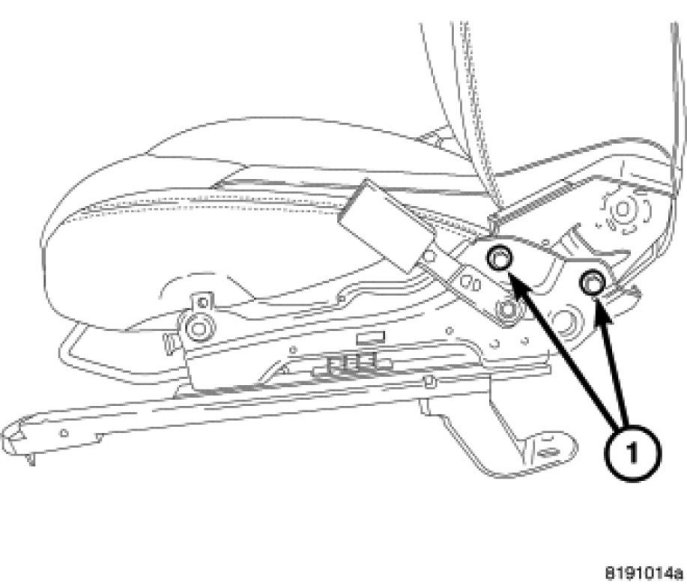

2. Install both pivot bolts (1) and tighten 40 Nm (30 ft. lbs.).

NOTE: Do not reuse the recliner assembly attaching bolts.

3. Connect electrical connectors if equipped.
4. Install seat cushion side shields. Seat Cushion Side Shields - Installation
5. Install seat in vehicle.Seat - Installation
