Removal

REMOVAL





1. Remove sill trim panel.Door Sill Scuff Plate - Removal

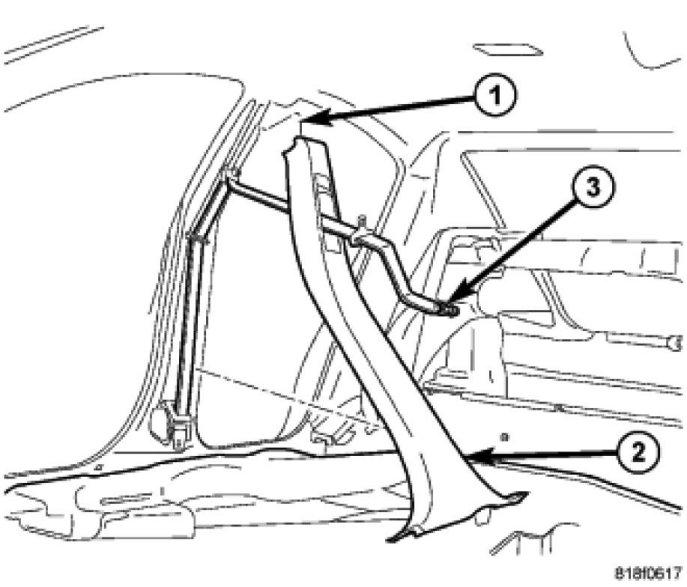

2. Remove seat belt anchor (3). Seat Belt Retractor
3. Using trim stick C-4755, remove SRS airbag cover located at top of B-pillar.
4. Move seat belt adjuster all the way down exposing the B-pillar screw. Remove B-pillar screw.
5. Using trim stick C-4755, pry up B-pillar and route seat belt through B-pillar trim. Remove B-pillar bottom (2) first and remove trim from B-pillar.
