Grille - Removal
Grille - Removal
REMOVAL
1.
Remove air box.
2.

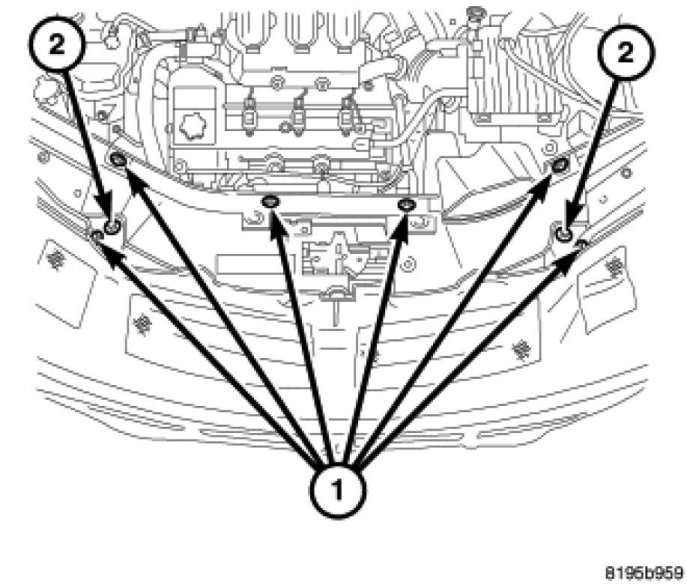

Remove push pins (1).
3.
Remove fasteners (2).
4.
Remove closure panel from vehicle.
