Transmission Mode Indicator - A/T: Locations




Component ID: 179
Component : LAMP-PRNDL

Connector:
Name : LAMP-PRNDL
Color : WHITE
# of pins : 3




Pin Circuit Description
1 E12 20OR/GY PANEL LAMPS DRIVER
2 - -
3 Z907 20BK GROUND

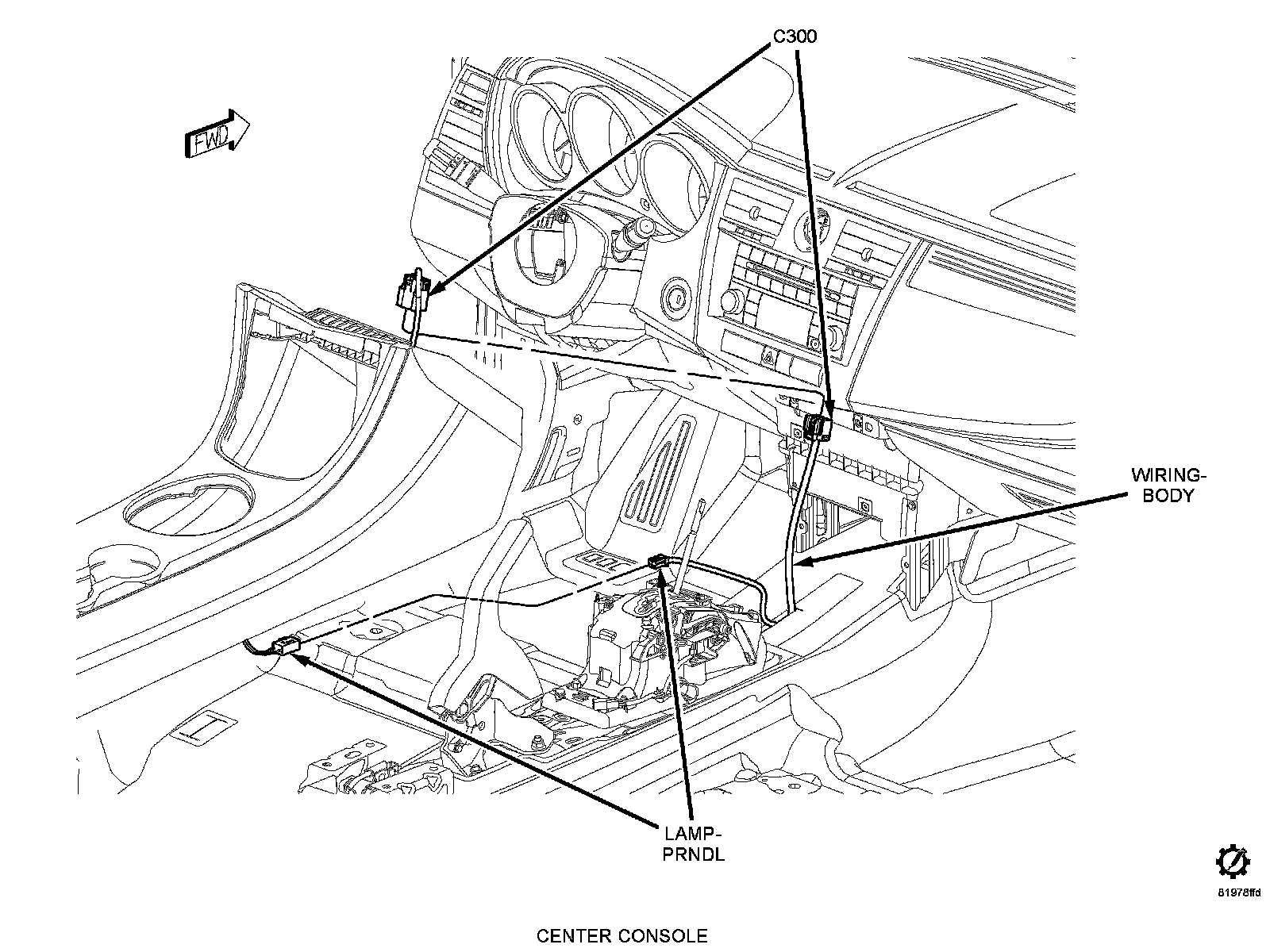

Component Location - 55

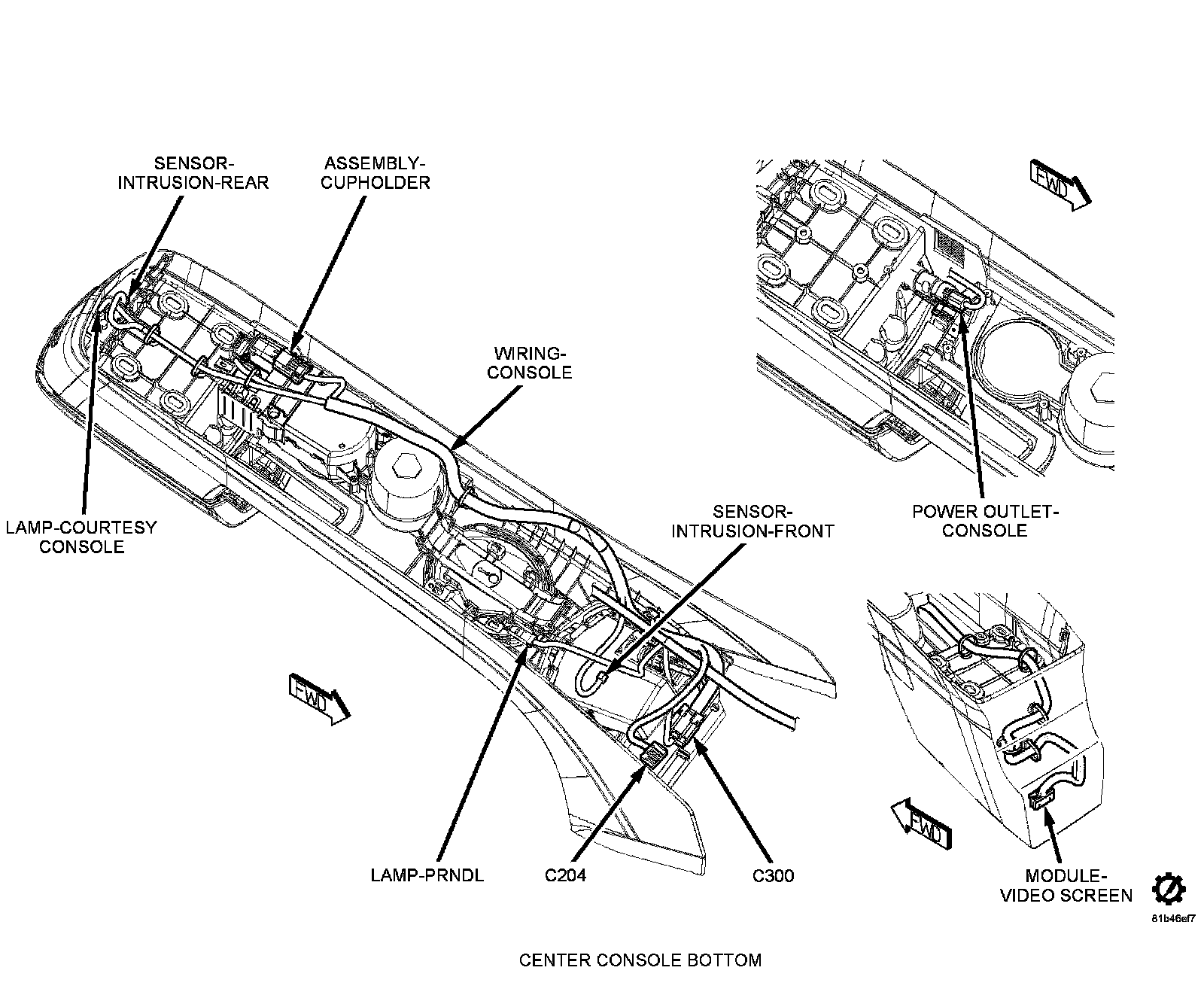

Component Location - 56




Component Location - 57
