Front Hub / Bearing - Removal

REMOVAL

NOTE: Before proceeding, review all Warnings and Cautions. Front Suspension

1. Raise and support the vehicle. Maintenance




2. Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).

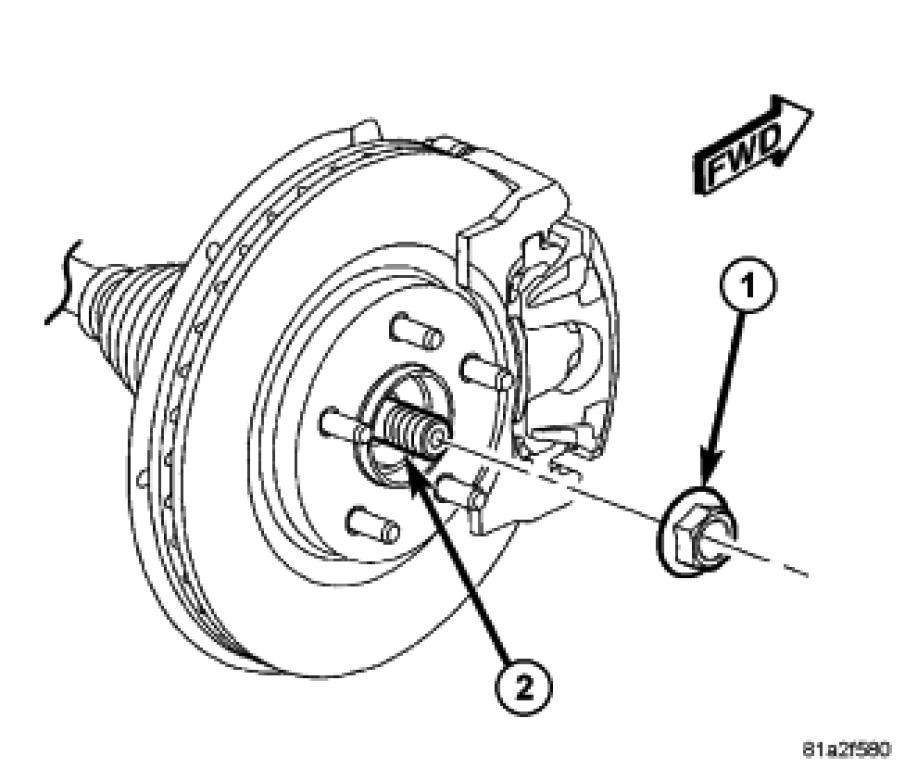

3. While a helper applies the brakes to keep the hub from rotating, remove the hub nut (1) from the axle half shaft (2).
4. Access and remove the front brake rotor. Brake Rotor - Removal

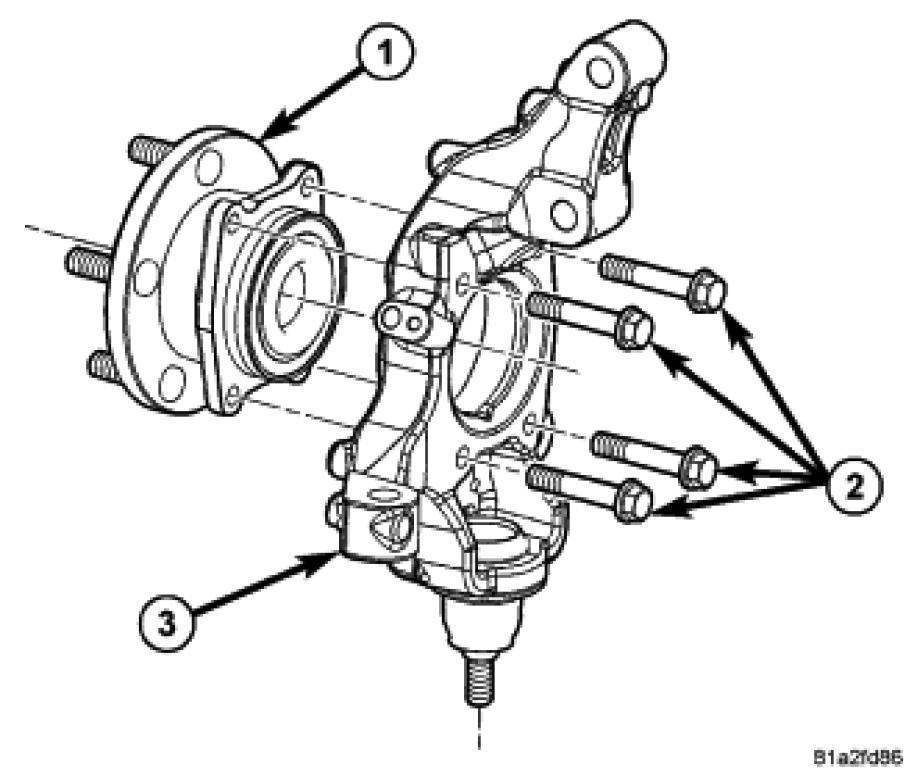

5. Remove the four bolts (2) fastening the hub and bearing to the knuckle (3).
6. Slide the hub and bearing (1) off the half shaft and out of the knuckle.
