Removal

REMOVAL





1. Disconnect and isolate the battery negative cable from its post on the battery.
2. If equipped, remove the silencer pad below the steering column.
3. Disconnect the wiring harness connector (4) at the switch (3).

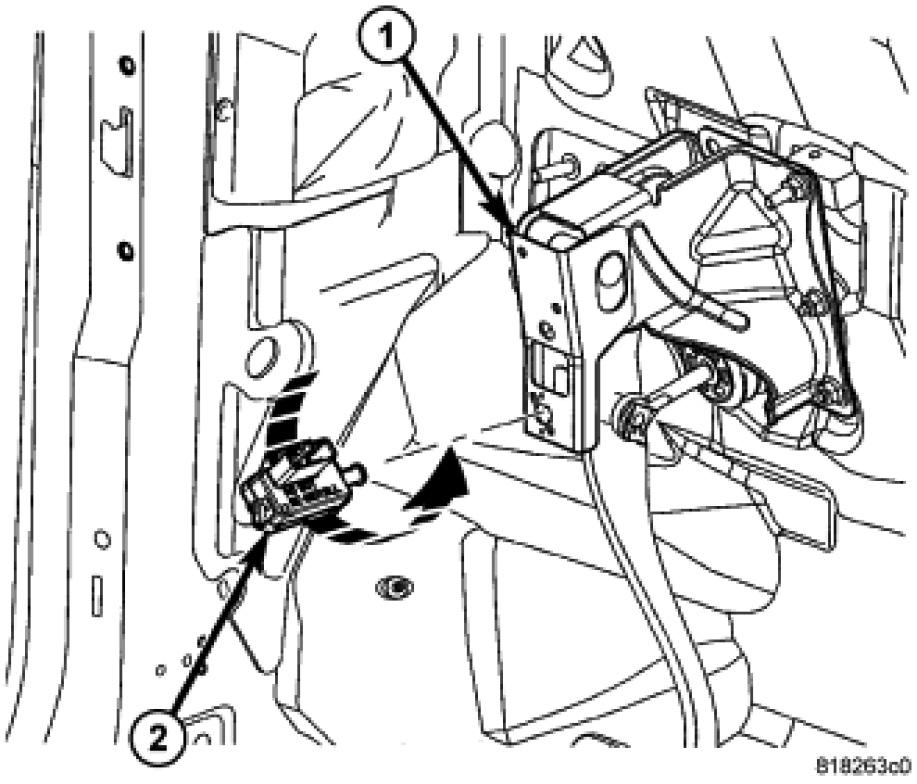

4. Remove the stop lamp switch (2) from the brake pedal bracket (1) by rotating the switch in a counterclockwise direction approximately 30 degrees, then pulling the switch rearward.
5. Discard the stop lamp switch. It must not be reused.
