Crankshaft Sprocket







CRANKSHAFT SPROCKET

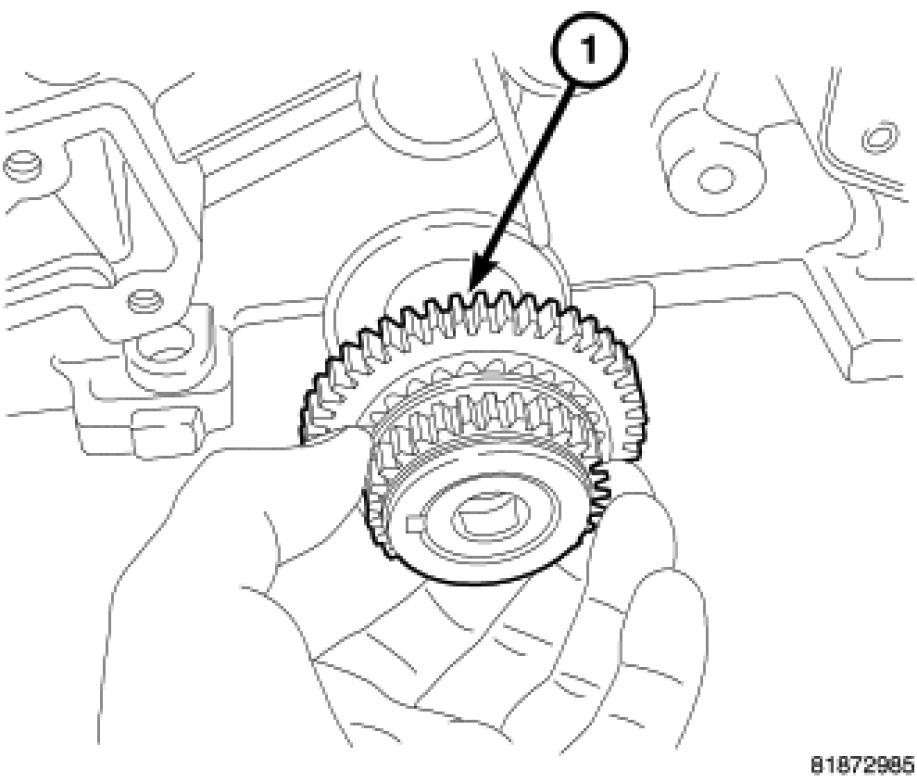

1. Install crankshaft sprocket (1) onto crankshaft.

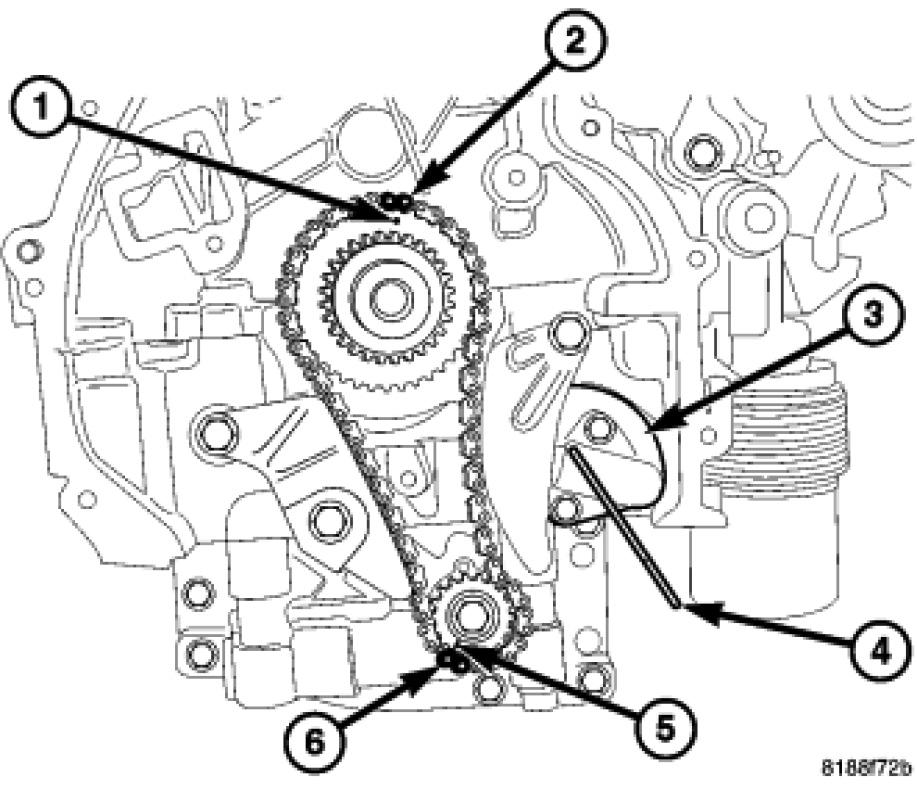

2. Install oil pump drive chain. Verify that Oil pump is correctly timed (1,2,5,6).

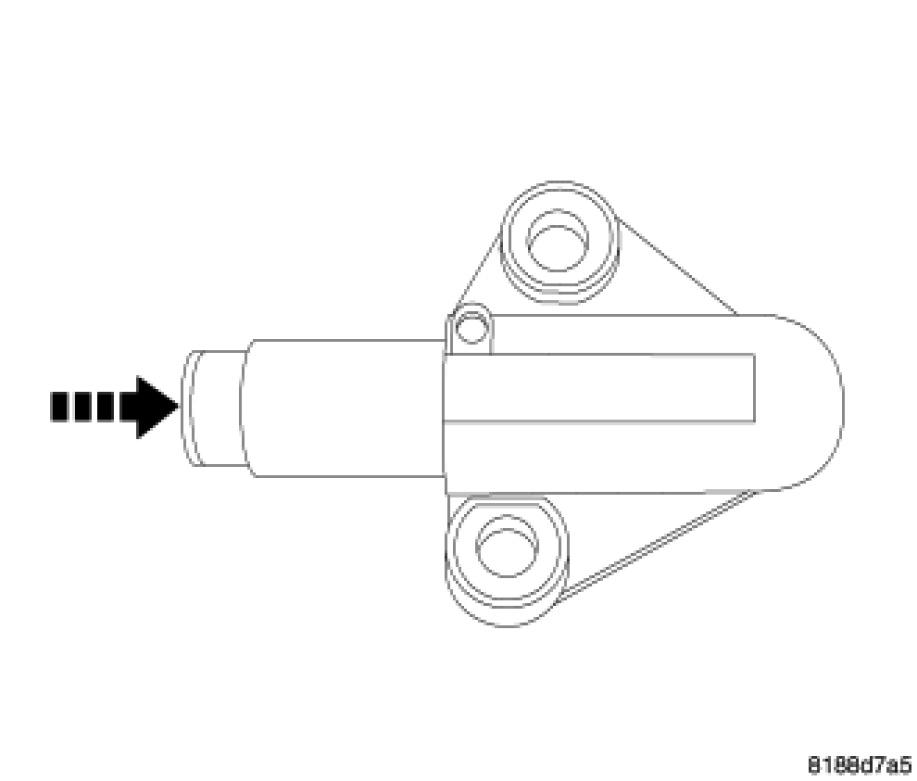

3. Reset oil pump drive chain tensioner by pushing plunger inward and install tensioner pin 8514.




4. Install oil pump drive chain tensioner (3) and remove Tensioner Pin 8514 (4).
5. Install timing chainTiming Chain & Sprockets - Installation.
6. Install oil panEngine Oil Pan - Installation.
7. Fill engine with oilService and Repair.
8. Start engine and check for leaks.
