Rear Engine Mount







REMOVAL





1. Raise vehicle.
2. Remove lower silencer (1).

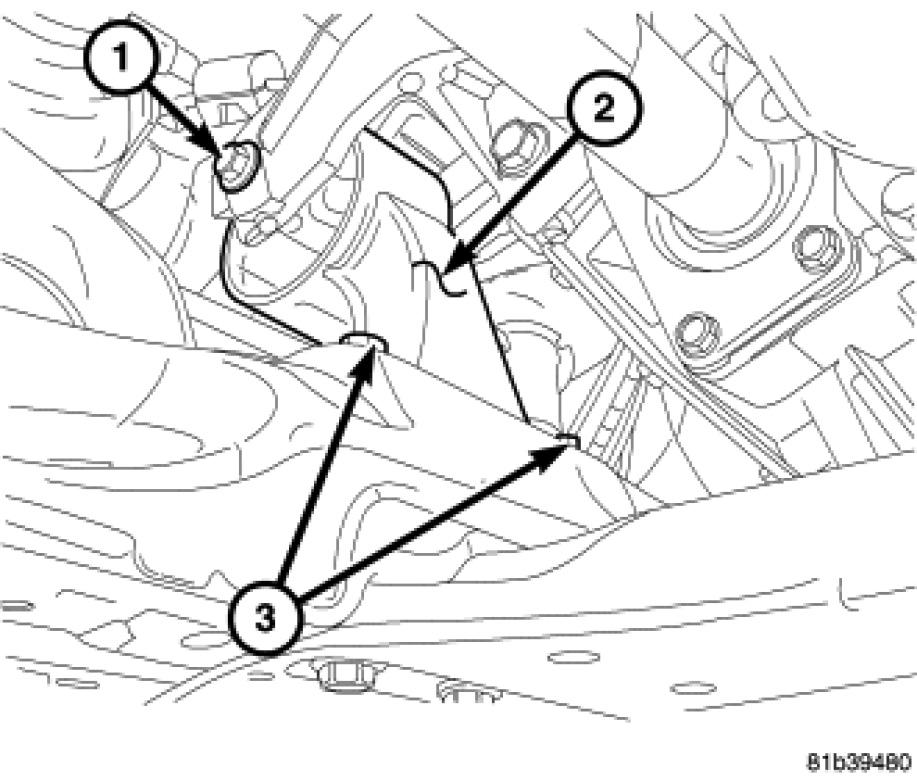

3. Remove rear mount retaining bolts (3).
4. Remove rear mount through bolt (1).

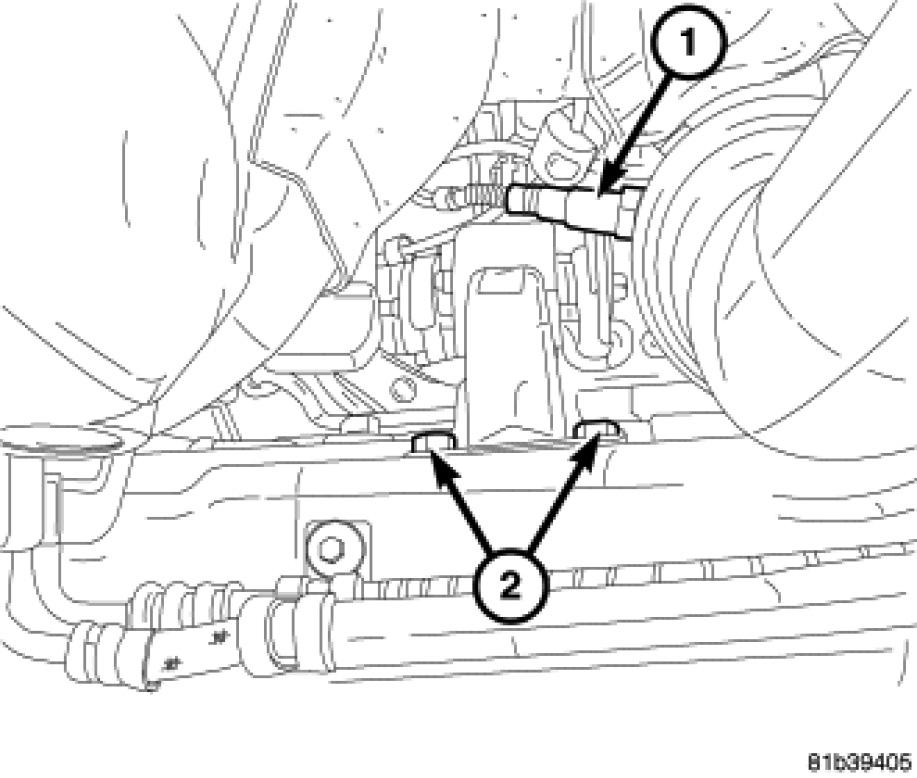

5. Remove oxygen sensor (1).
6. Remove rear mount retaining bolts (2).

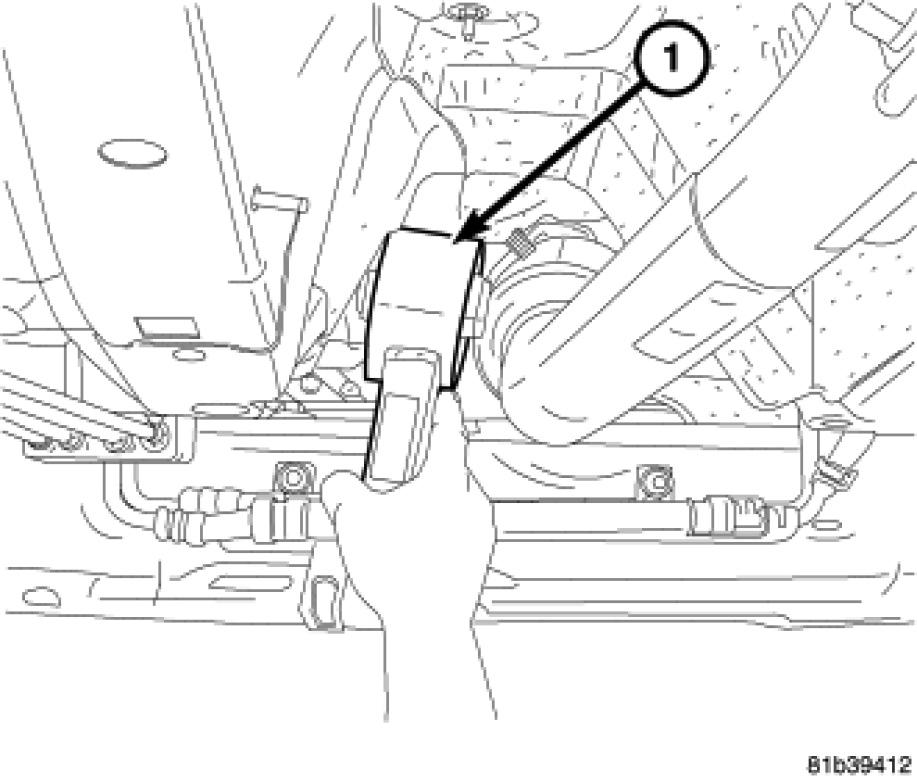

7. Remove rear mount (1) towards the rear of the vehicle.
