Left Engine Mount







INSTALLATION

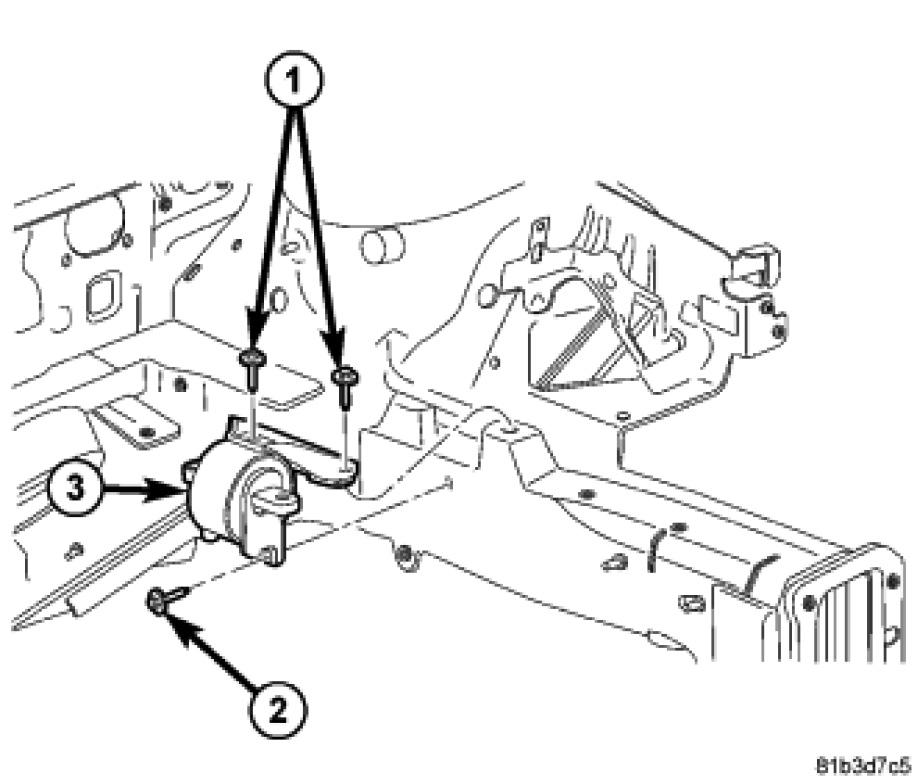

1. Position mount isolator (3) in place and install bolts (1,2) and tighten to 75 Nm (55 ft. lbs.).




2. Raise transaxle in position and install bolts (2) and tighten to 68 Nm (50 ft.lbs.).
3. Remove jack.




4. Install PCM mounting bracket.
5. Install PCM.
6. Connect negative battery cable.

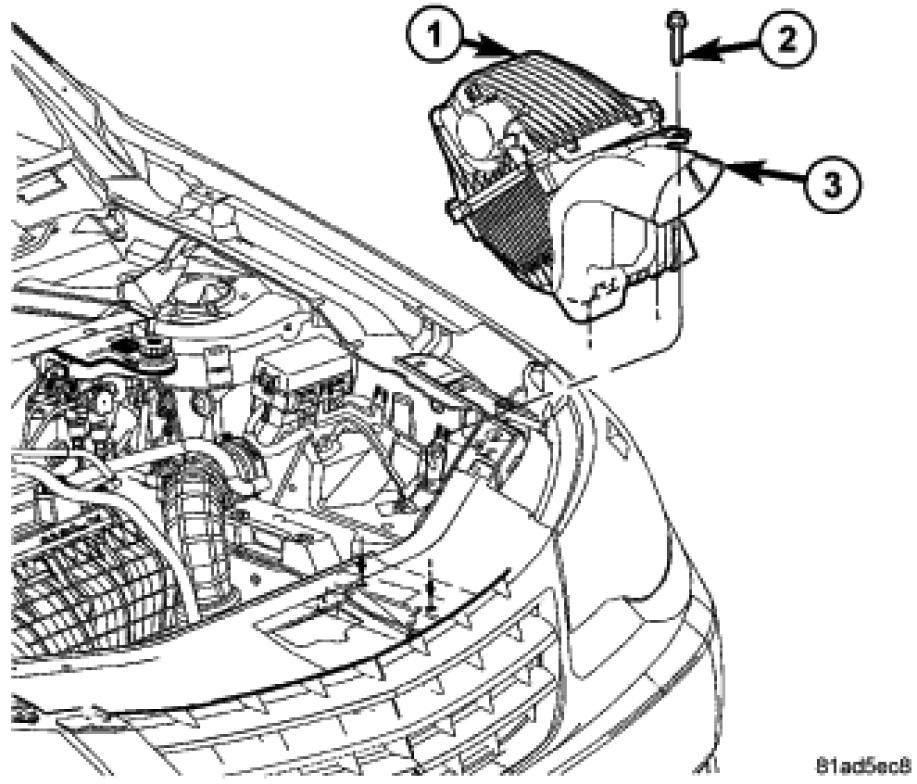

7. Install air cleaner assembly (1).
