Sun Visor Support - Removal







REMOVAL

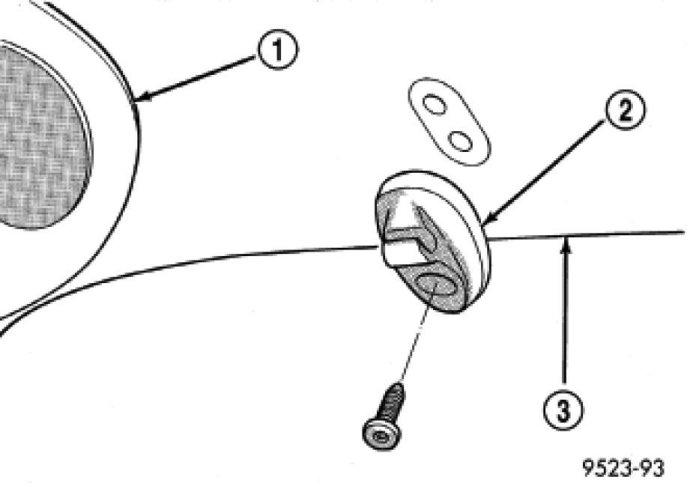

1. Disengage the sun visor (1) from the sun visor support (2).
2. Remove the screw that secures the support to the roof panel and remove the support from the headliner (3).
