Wiper Motor: Testing and Inspection

FRONT WIPER MOTOR

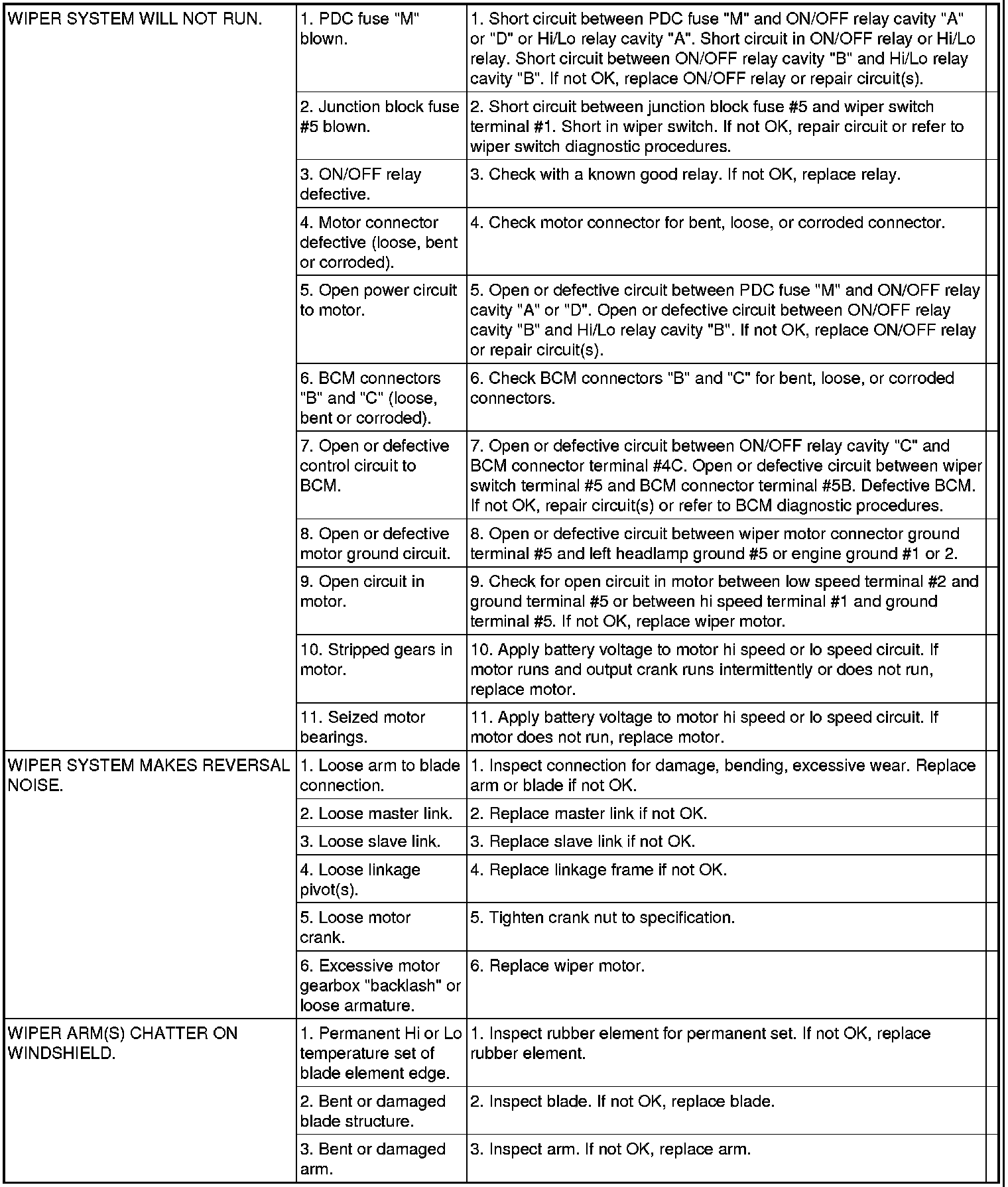

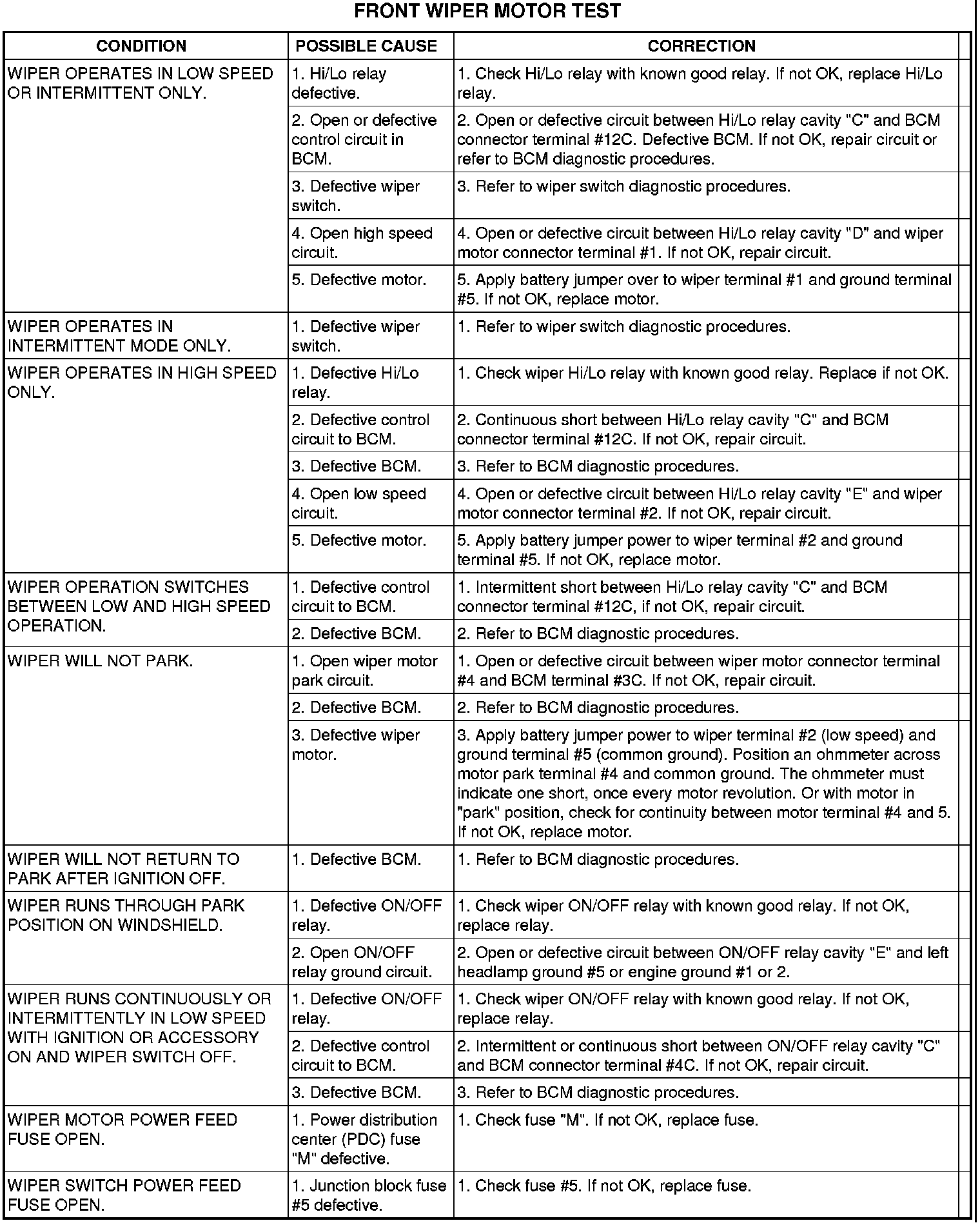

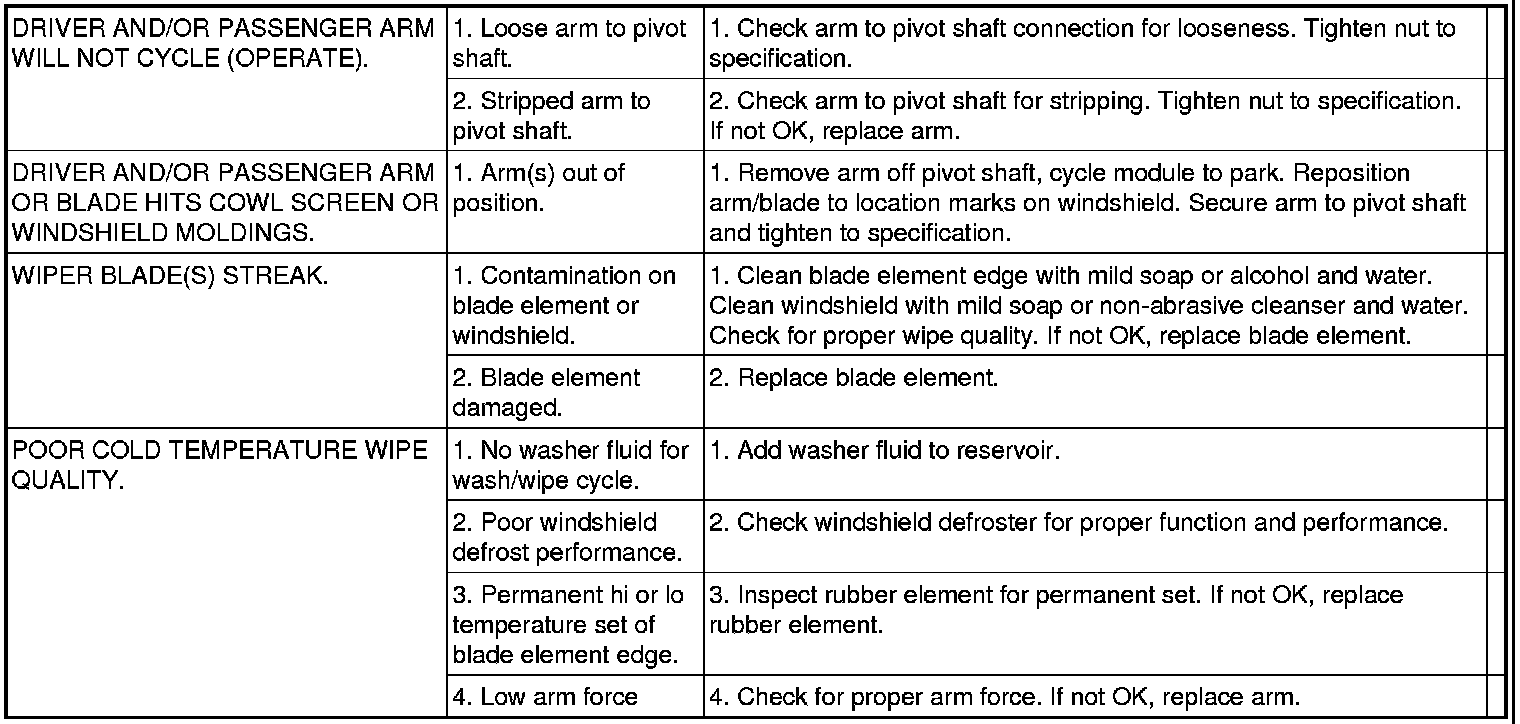

Whenever a front wiper motor malfunction occurs, disconnect motor wire harness and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. Refer to FRONT WIPER MOTOR TEST table, use a scan tool, and the appropriate diagnostic information.
