Front

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the wiper module (1) Wiper Module - Removal.

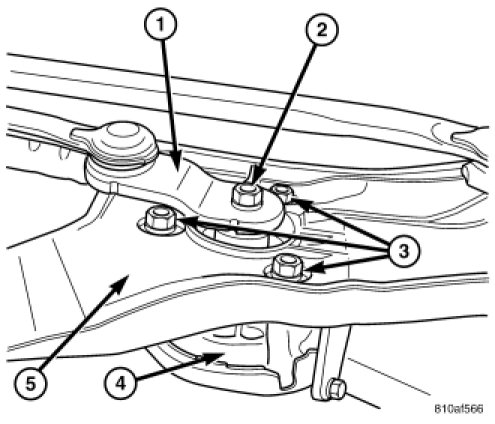

3. With wiper module on bench, pry apart the socket and ball joint at the end of the bell crank (1).
4. Remove the three front wiper motor mounting bolts (3) and remove motor (4) from module/linkage (5).
