Wiper Module - Installation

INSTALLATION

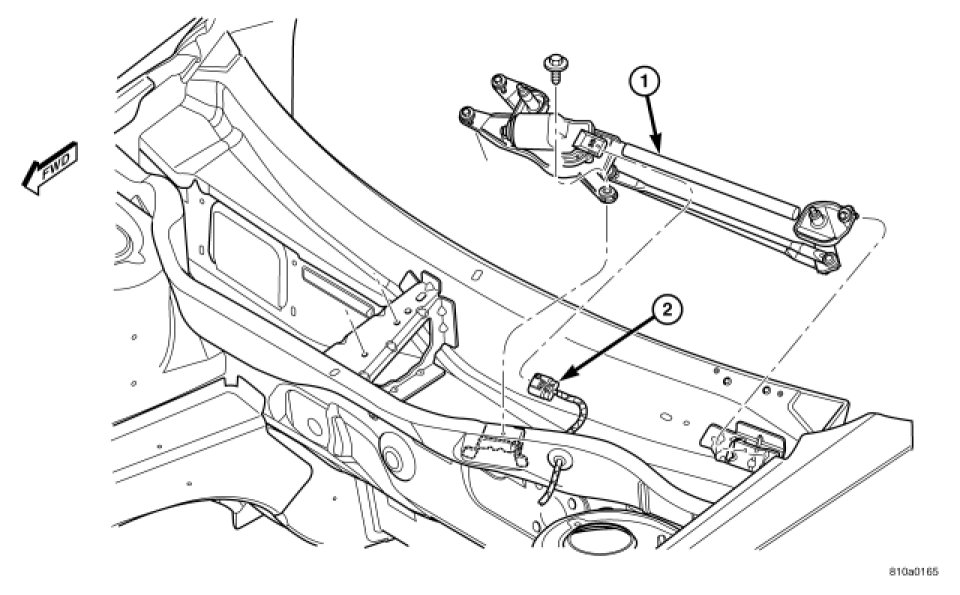

1. Place wiper module (1) into position in vehicle.
2. Install the four retaining bolts to the wiper module.
3. Connect the wiper motor electrical connector (2).
4. Install the cowl plenum grille Installation.
5. Connect the battery negative cable.
