Front

REMOVAL

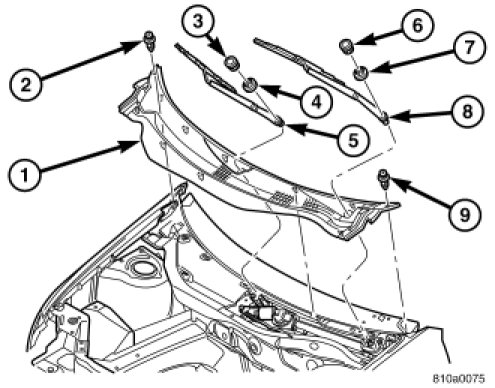

1. Using a trim stick or equivalent, gently pry the arm retaining nut cap (3 or 6) off.
2. Remove the nut (4 or 7) holding wiper arm to the wiper pivot.
3. Using a suitable two jaw puller, separate the wiper arm (5 or 8) from the wiper pivot.
