Installation

INSTALLATION

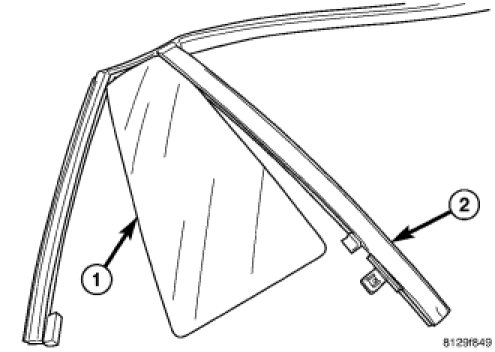

1. Position quarter glass into the fixed glass run channel.

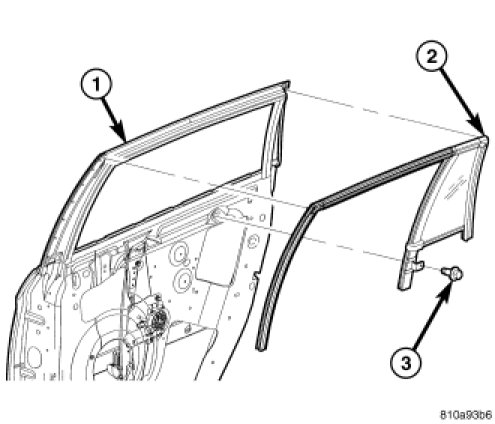

2. Place fixed glass run channel into position in door.




3. Install screw attaching glass run to door panel.
4. Insert glass run into window frame channel.
5. Install inner belt weatherstrip.
6. Install outer belt molding.
7. Install outer belt molding attaching screws.
8. Install watershield. Installation.
9. Install door trim panel. Rear Door Trim Panel - Installation.
10. Raise door window glass.
