Removal

REMOVAL





1. Remove right halfshaft assembly. Half Shaft - Removal
2. Remove the exhaust from engine Catalytic Converter - Removal.
3. Remove engine cradle crossmember Service and Repair
4. Remove propeller shaft assembly. Propeller Shaft - Removal.
5. Remove PTU/rear mount bracket.
6. Remove heat shield.
7. Remove bracket and brace.

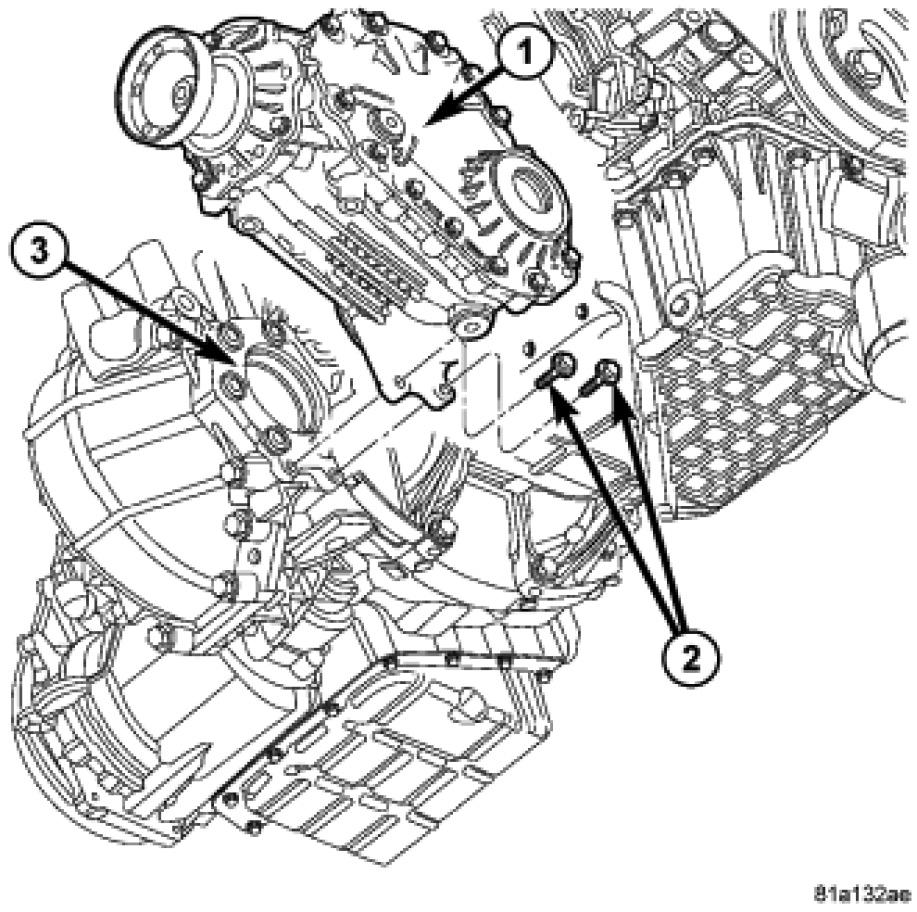

8. Remove PTU-to-transaxle upper bolts.
9. Remove PTU-to-bracket lower bolts.
10. Remove PTU from vehicle.
