Removal

REMOVAL





1. Remove propeller shaft Propeller Shaft - Removal.

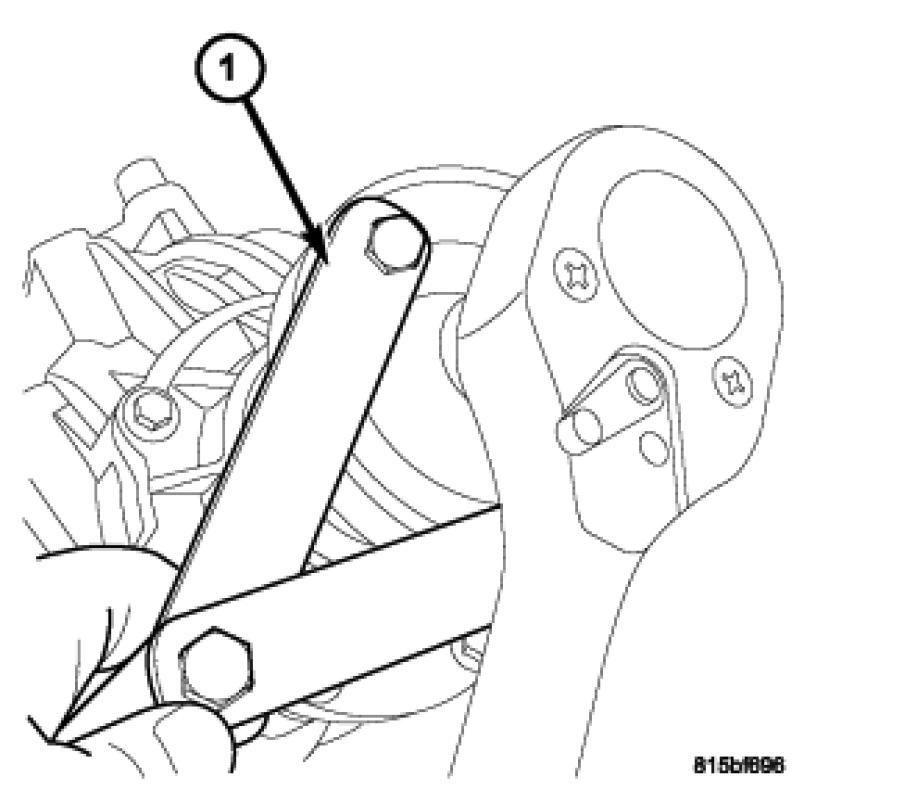

2. Using Spanner Wrench 6958 (1) and suitable ratchet and socket, remove output flange nut

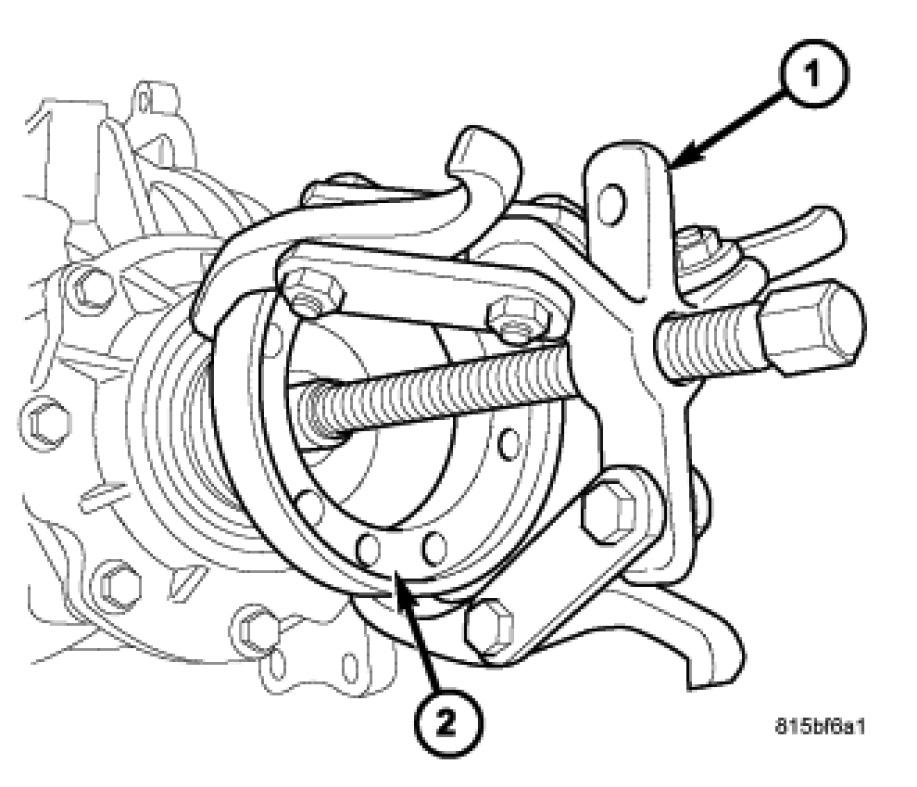

3. Install Puller 1026 (1) and remove PTU output flange (2).
4. Using suitable screwdriver, remove seal and discard.
