Installation







INSTALLATION

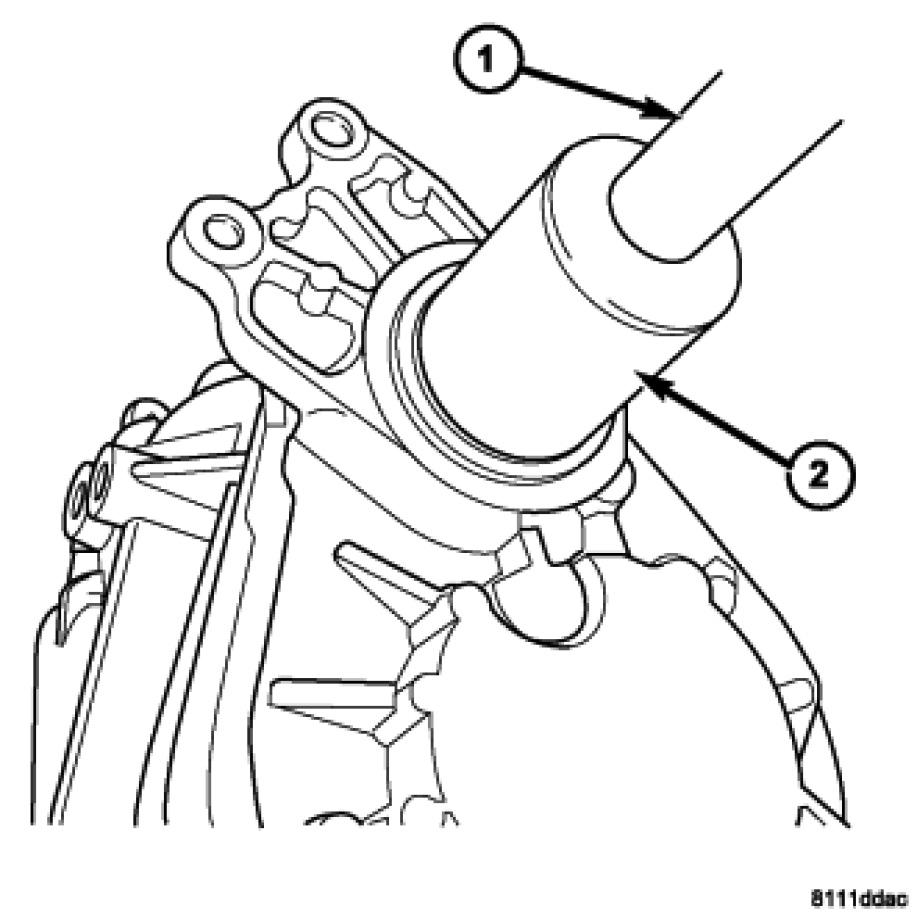

1. Using Handle C4171 (1) and Installer L-4429-3 (2), install input shaft seal.
2. Install Power Transfer Unit. Installation
