Installation

INSTALLATION

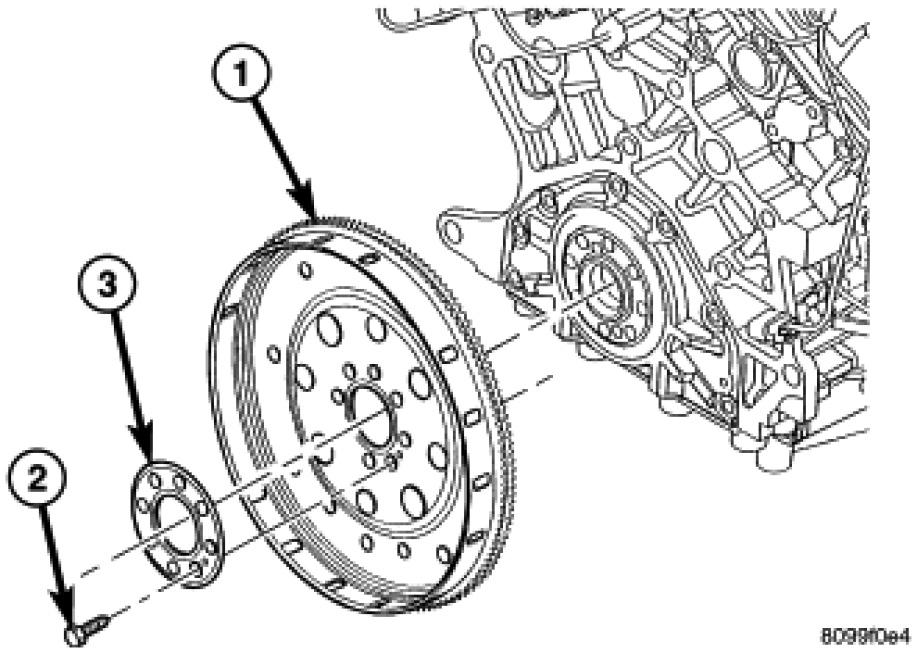

1. Position flex plate (1) with backing plate (3) on the crankshaft.
2. Apply Mopar(R) Lock & Seal Adhesive to the (8) flex plate bolts.
3. Install flex plate bolts (2). Tighten bolts to 95 Nm (70 ft. lbs.).
4. Install the transaxle . Removal and Replacement
