Diagnosis and Testing - Rear Driveline Module Operation







DIAGNOSIS AND TESTING - REAR DRIVELINE MODULE OPERATION

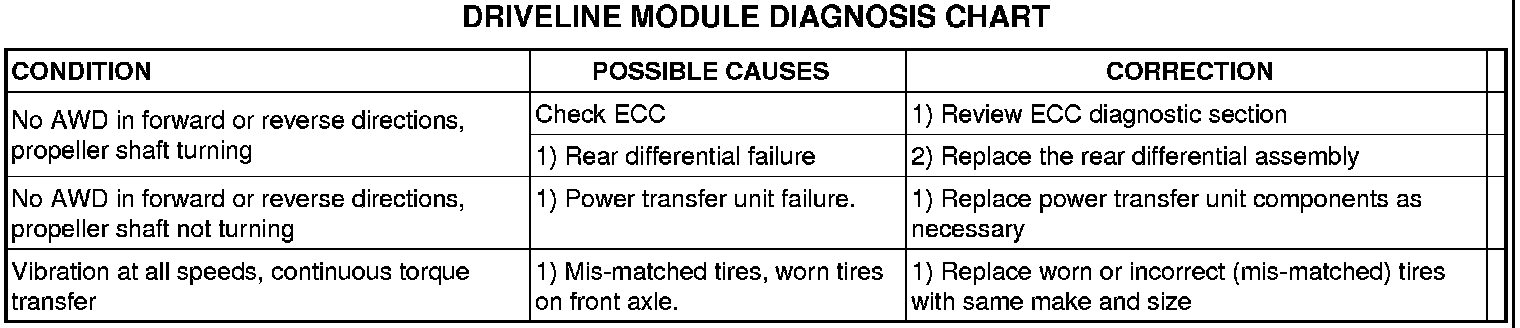

Driveline module operation requires relatively straight-forward diagnosis. Refer to the following chart:
