Installation







INSTALLATION

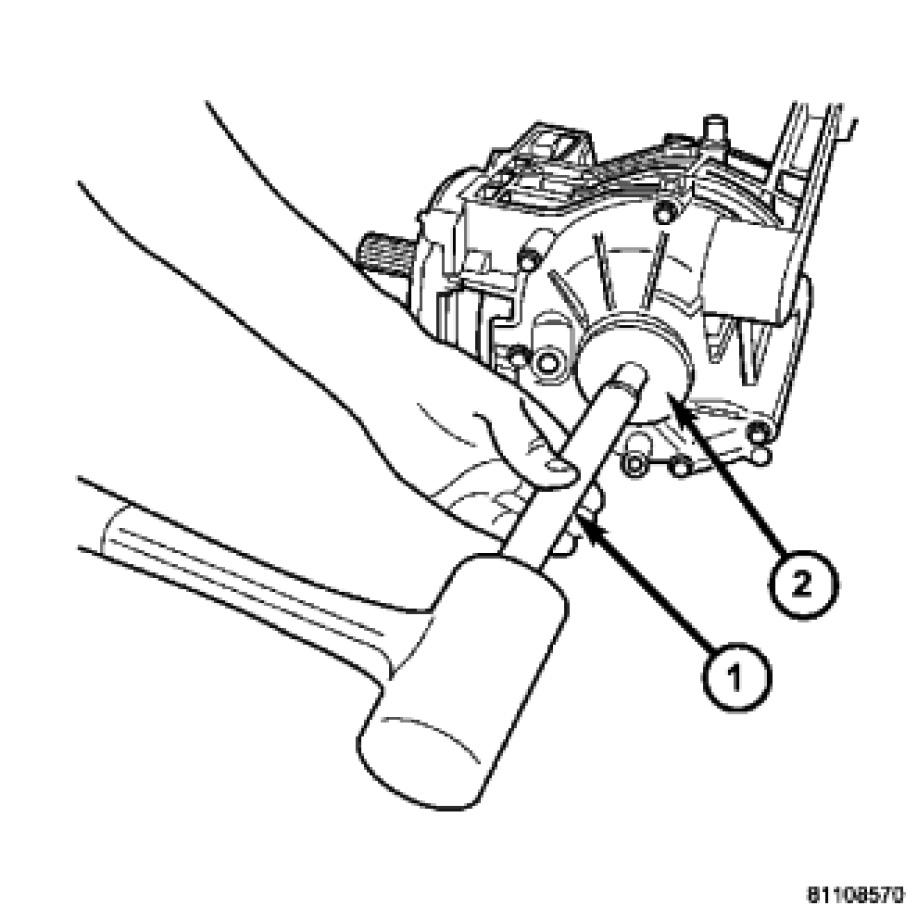

1. Install output flange seal to differential housing using handle C- 4171A (1) and installer 8493 (2).
2. Install rear driveline module. Installation
3. Check differential assembly fluid level and adjust as required. Procedures
