Front Lower Control Arm - Removal







REMOVAL

1. Raise and support vehicle. Maintenance




2. Remove wheel mounting nuts (3), then tire and wheel assembly (1). Tires and Wheels - Removal
3. Remove knuckle. Front Steering Knuckle - Removal

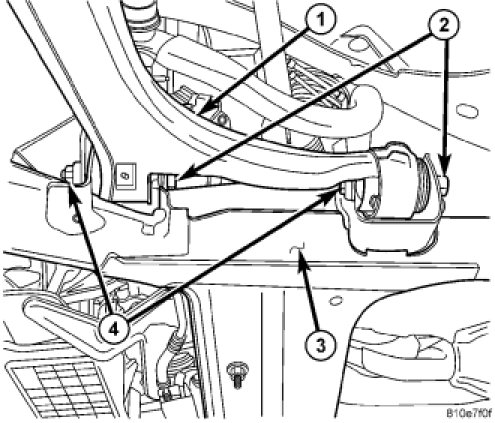

4. Remove bolts (2) and nuts attaching lower control arm (1) to engine cradle (3).
5. Remove lower control arm (1).
