Battery Tray - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the battery from the vehicle. Battery - Removal.

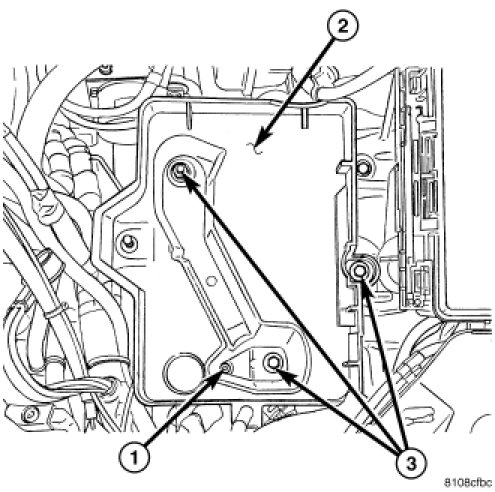

3. Remove the battery tray retaining fasteners (3).
4. Pull battery tray up far enough to disconnect the drain hose assembly.
5. Remove the battery tray (2) from the vehicle.
