Installation

INSTALLATION

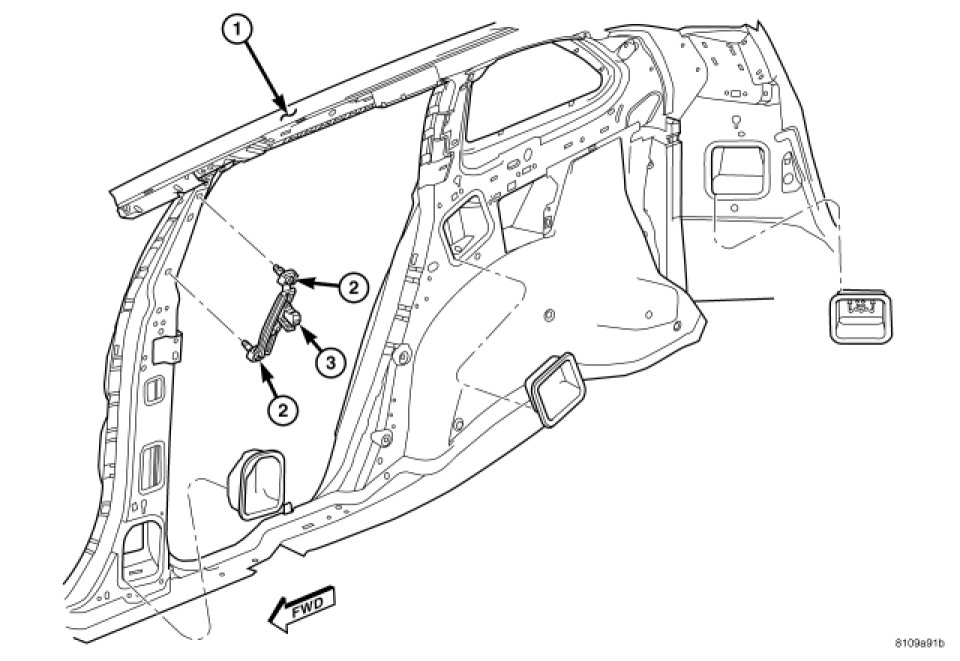

1. Position height adjuster (3) in place and install the two mounting bolts (2). Tighten bolts to 40 Nm (30 ft. lbs.).
2. Install the turning loop to height adjuster retaining bolt. Tighten bolt to 40 Nm (30 ft. lbs.).
3. Install the upper B-pillar trim B-Pillar Trim.
4. Position the height adjuster knob cover onto the height adjuster knob and firmly snap into place.
