Front

REMOVAL





NOTE: It may be necessary to remove the front seat to remove buckle off mounting stud. If so, Seat - Removal

1. Move seat to rearward most position.

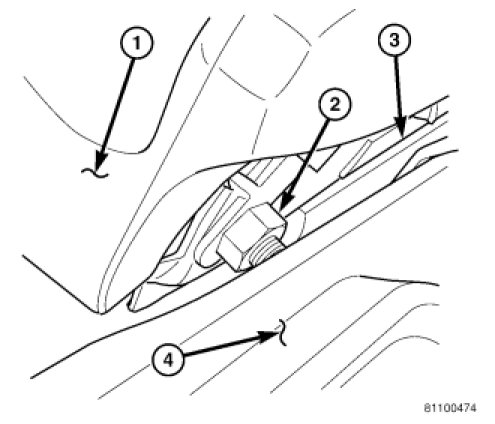

2. Remove buckle half retaining nut (2).
3. Carefully slide the buckle half off mounting stud.
4. Slide buckle half up through side cushion trim and remove from seat.
