Removal

REMOVAL

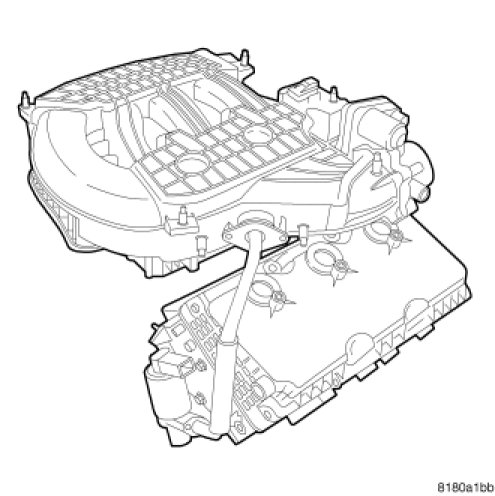

1. Remove intake manifold, Intake Manifold - Removal.

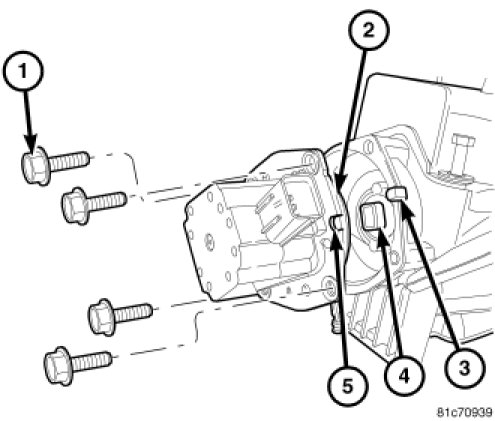

2. Remove short running valve (SRV) solenoid mounting bolts (1).
3. Carefully pull the SRV solenoid assembly straight out of intake manifold.
4. Inspect gasket (2), remove and replace if damaged.
