Injector-Fuel 3

Component ID: 140

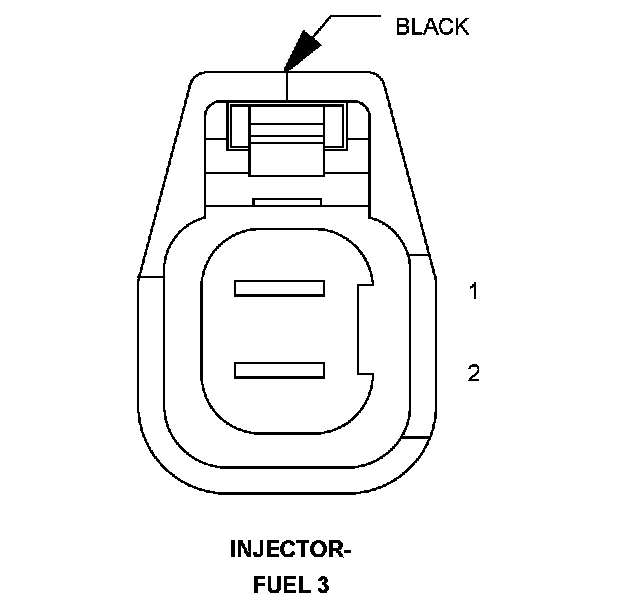

Component : INJECTOR-FUEL 3

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16PK/BR ASD RELAY OUTPUT
2 K13 16BR/LB INJECTOR 3 CONTROL

Component Location - 12
