Air Cleaner Housing - Installation

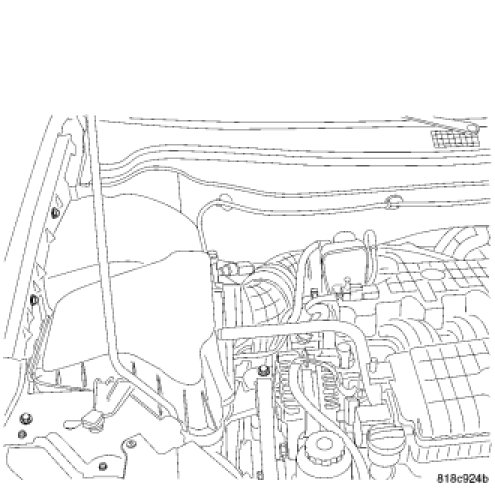

INSTALLATION





1. Install the housing on the locating pin.
2. Install housing retaining bolt.
3. Connect the air inlet hose to the throttle body and tighten clamp.
4. Connect the air circulation hose to housing.
5. Connect the intake air temperature (IAT) sensor wiring harness connector.
