Crankshaft Sprocket







INSTALLATION - CRANKSHAFT SPROCKET

CAUTION: To ensure proper installation depth of crankshaft sprocket, Special Tool 6641 must be used.

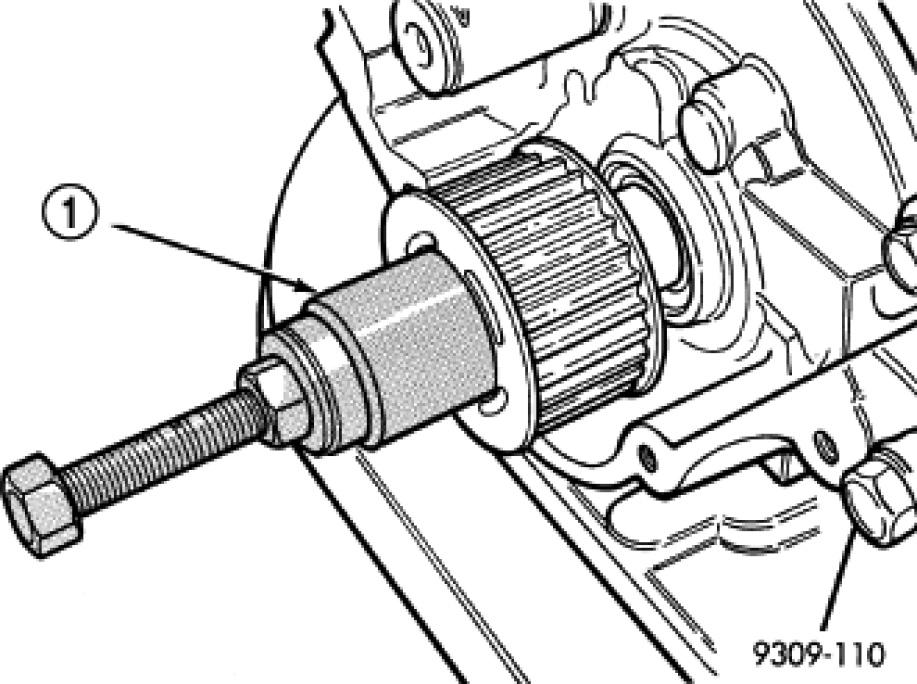

1. Install crankshaft sprocket using Special Tools 6641 and C-4685-C1.




2. Install timing belt Timing Belt & Sprockets - Installation.
