Accessory Drive Belt - Installation

4.0L ENGINE




ACCESSORY DRIVE BELT - 4.0L

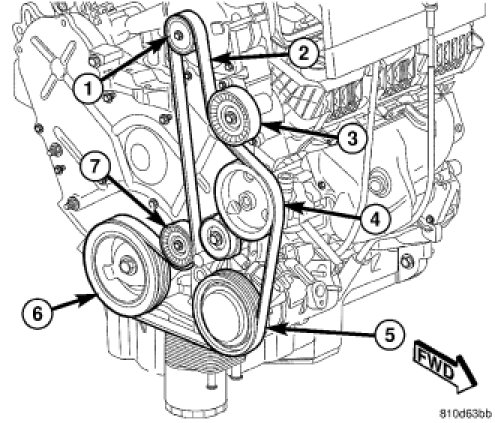

1. Route and position the drive belt onto all pulleys, except for the crankshaft.

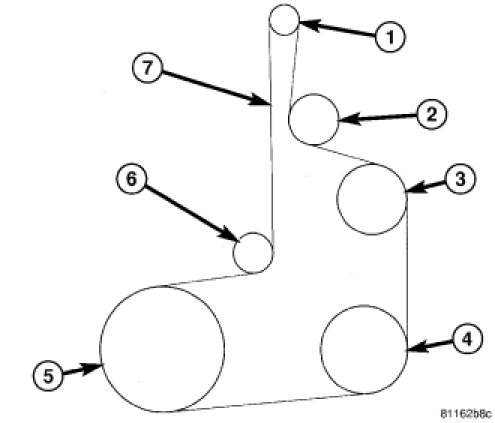

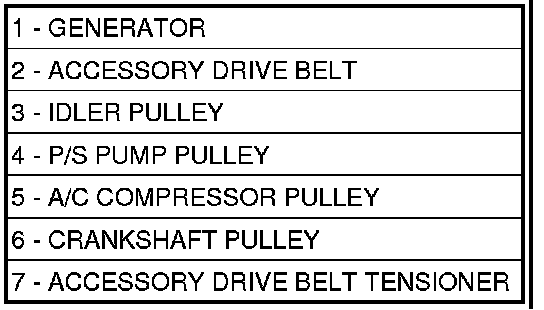

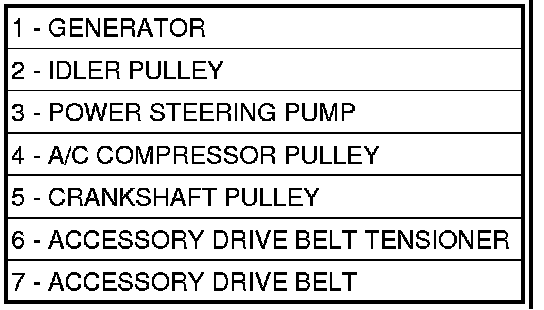

Accessory Drive Belt Routing





2. Rotate belt tensioner counterclockwise until belt can be installed onto the crankshaft pulley. Slowly release belt tensioner.
3. Verify belt is properly routed and engaged on all pulleys.
4. Install drive belt shield and lower vehicle.
