Liftgate Lamp Bulb - Removal

BULB





1. Open hood, disconnect and isolate the battery negative cable.
2. Open liftgate.

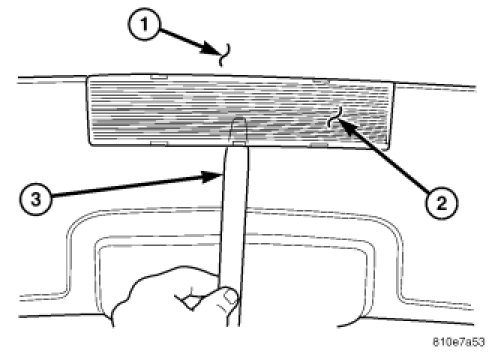

3. Using a trim stick or equivalent (3), gently pry out on door courtesy lamp lens (2) and remove from trim panel (1).

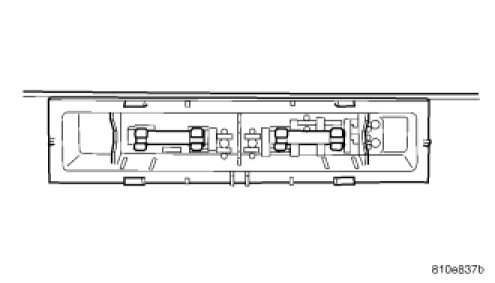

4. Gently pry up on the edge of the lamp and pull out of the liftgate lamp unit to remove.
