Liftgate Lamp - Removal

LIFTGATE UNIT





1. Disconnect and isolate the battery negative cable.
2. Remove the liftgate trim panel (2) Liftgate Trim Panel - Removal.

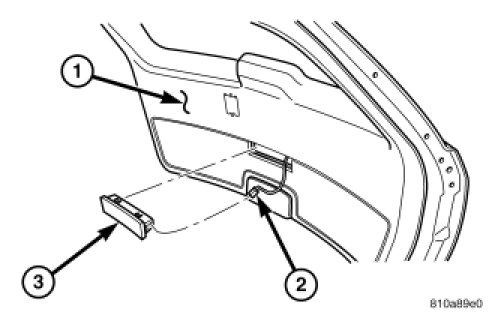

3. With the trim panel (1) on the bench, push in on the side retaining clips of the liftgate lamp unit (3) and push through trim panel to remove.
