Removal

REMOVAL

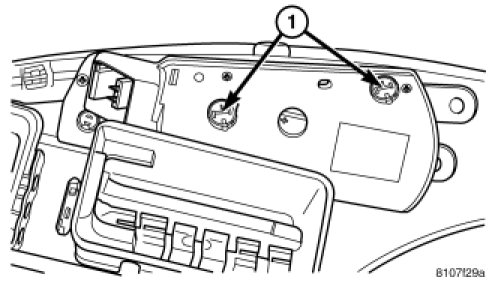

The Instrument Panel Switch Pod has two illumination lamps (1). If found to be faulty, the entire cluster bezel must be removed. The Light Emitting Diodes (LED's) are serviceable by turning 1/4 turn counterclockwise to remove. The cluster bezel must first be removed to service the LED's Instrument Panel Cluster Bezel - Removal.
