Installation

BULB

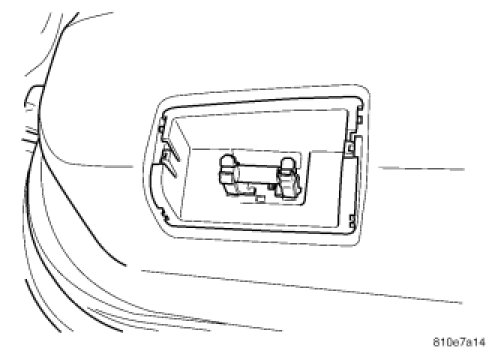

1. Place lamp over retaining clips in door courtesy lamp unit retaining clips and firmly snap into place.

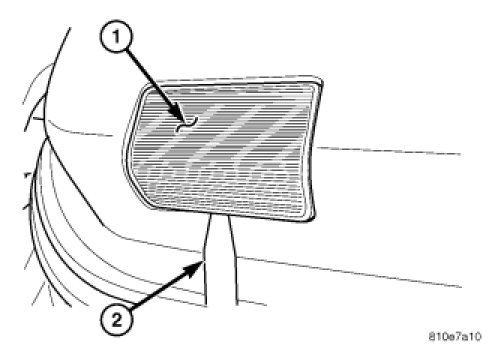

2. Place the door courtesy lamp lens (1) over the retaining pins making sure that they are lined up and them firmly snap into place.
3. Close door.
4. Connect the battery negative cable.
