Instrument Cluster Lens - Installation

INSTALLATION

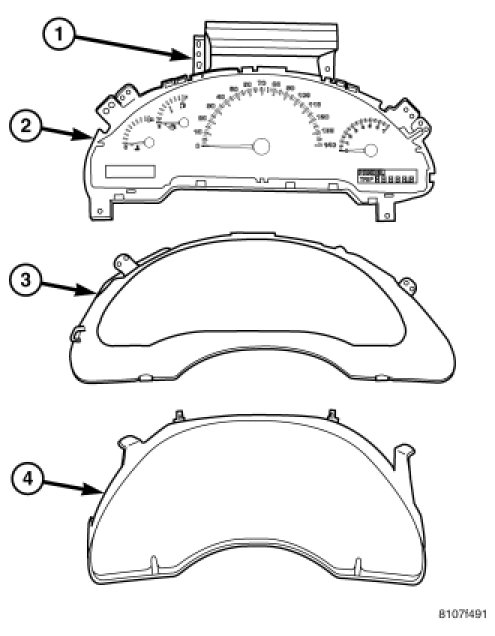

1. Align the tabs of the lens (4) over the retaining slots of the cluster housing (2). Be careful to align the trip odometer button through the cluster lens (4).
2. Firmly push down until you seat all the retaining tabs.
3. Install the two screws retaining the mask/lens (3 and 4) to the cluster housing (2).
4. Install the instrument cluster Instrument Cluster - Installation.
