5 Passenger Seating

5 PASSENGER SEATING

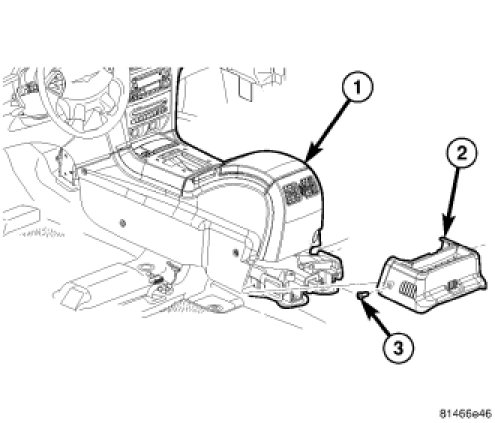

1. Remove the two screws (3) that secure the rear floor outlet assembly (2) to the rear of the center floor console (1) and remove the floor outlet assembly.
2. Remove the center floor console cover . Floor Console - Removal
3. Remove the gear shift assembly .

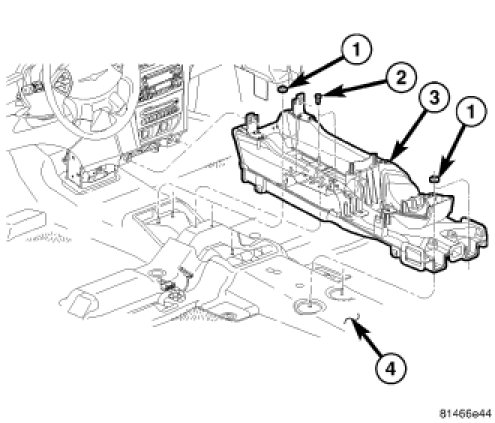

4. Remove the five nuts (1) and two bolts (2) that secure the floor console base and duct assembly (3) to the center floor panel (4) and remove the base and duct assembly.
