Cross Pipe - Removal
Cross Pipe - Removal
4.0L
1.

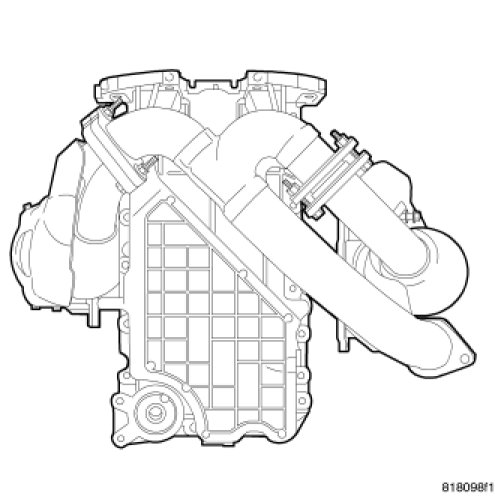

Remove the bolts and nuts attaching the crossunder pipe to the manifolds.
2.
Remove the crossunder pipe
