Rear Timing Belt Cover







REMOVAL

1. Perform fuel pressure release procedure. Service and Repair.
2. Disconnect the negative battery cable.
3. Remove timing belt Timing Belt & Sprockets - Removal.
4. Remove camshaft sprockets Timing Belt & Sprockets - Removal.

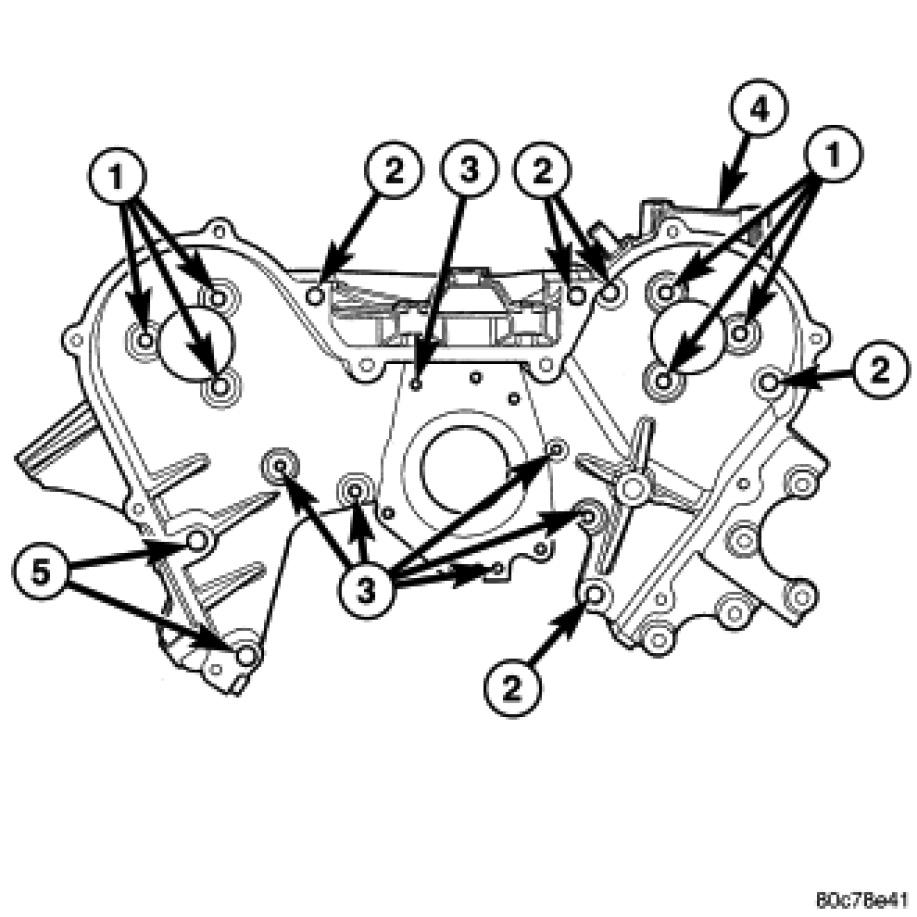

5. Remove rear timing belt cover bolts.
6. Remove the rear cover.

NOTE: The rear timing belt cover has O-rings to seal the water pump passages to cylinder block. Do not reuse the O-rings.
