Engine Oil Cooler - Installation

INSTALLATION

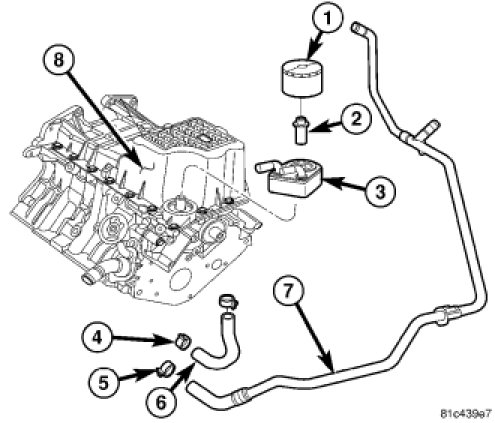

1. Lubricate seal and position oil cooler (3) so that the notch of the oil cooler is aligned to the notch on oil pan (8).

NOTE: Position the flat side of oil cooler parallel to oil pan rail.

2. Install oil cooler attaching fastener and tighten to 54 Nm (40 ft. lbs.).
3. Install oil filter (1).
4. Connect inlet coolant hose (7) and outlet coolant hose (6) to oil cooler (3).
5. Fill cooling system.
