Accessory Drive Belt Tensioner - Removal







4.0L ENGINE





1. Raise vehicle on hoist.
2. Remove the drive belt shield.
3. Remove the drive beltAccessory Drive Belt - Removal.

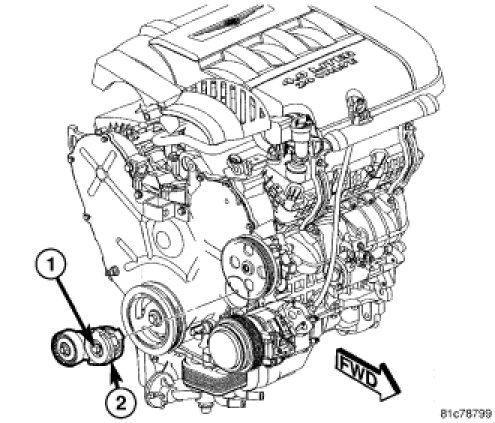

4. Remove the belt tensioner.
