Inspection - Valves







INSPECTION - VALVES

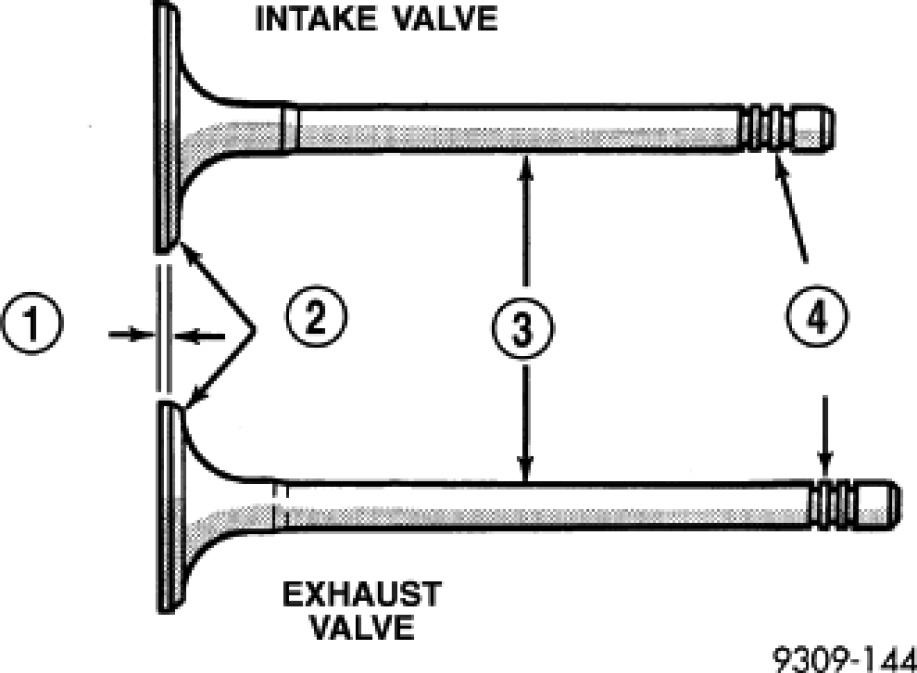

1. Measure valve stems for wear approximately 60 mm (2.36 in.) below the valve lock grooves.
2. Compare measurement to specifications, Engine Specifications.

NOTE: Valve stems are chrome plated and should not be polished.
